Repair procedures: Removal

  1. Turn the ignition switch OFF and disconnect the battery negative (-) cable.
  2. Disconnect the CVVT oil control valve connector (A).
  3. Remove the installation bolt (B), and then remove the valve from the engine.

    [Bank 1/Intake]

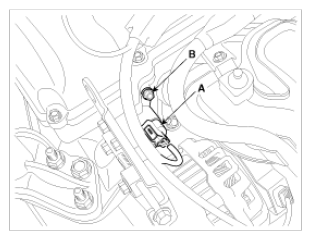

    Fig 1: Identifying CVVT Oil Control Valve Connector And Installation Bolt (Bank 1 / Intake)
    G08807082Courtesy of HYUNDAI MOTOR AMERICA

    [Bank 1/Exhaust]

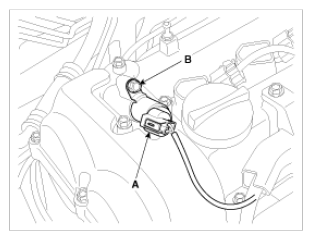

    Fig 2: Identifying CVVT Oil Control Valve Connector And Installation Bolt (Bank 1 / Exhaust)
    G08807083Courtesy of HYUNDAI MOTOR AMERICA
