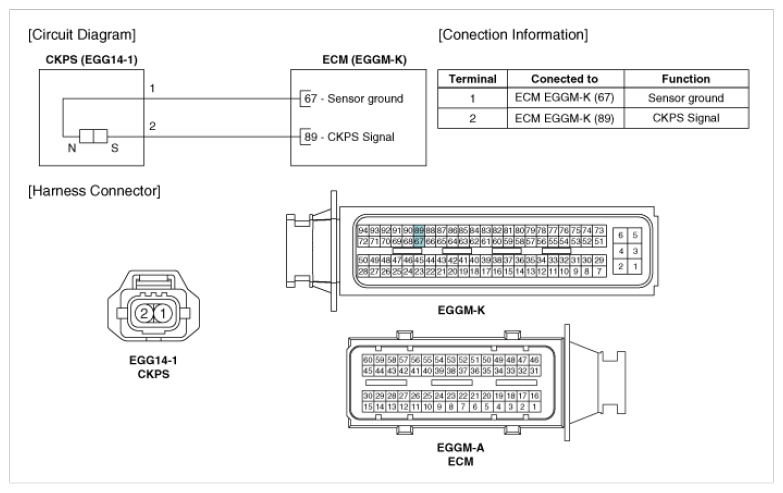

Home › Hyundai › 2012 › Veloster Standard Trans › Repair and Diagnosis › Engine Performance › Engine Control Systems › Engine Control System - Non-Turbo › Crankshaft Position Sensor (CKPS) › Schematic Diagrams › Circuit Diagram › Non - ISG
