Repair procedures: Removal

  1. Turn the ignition switch OFF and disconnect the battery negative (-) cable.
  2. Disconnect the engine coolant temperature sensor connector (A).

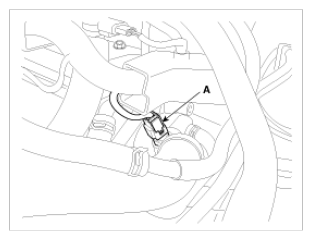

    Fig 1: Identifying Engine Coolant Temperature Sensor Connector
    G08807023Courtesy of HYUNDAI MOTOR AMERICA
  3. Supplement the engine coolant (Refer to "Cooling System ").
