Repair Procedures: Installation

WARNING: This page is about a different car, the 2014 Hyundai Veloster and 2013 Hyundai Veloster. However, it is still accessible from the selected car via links, so may be relevant.
  1. Installation is the reverse of removal.
  2. Use a SST (09581-11000) when installing the brake caliper assembly.

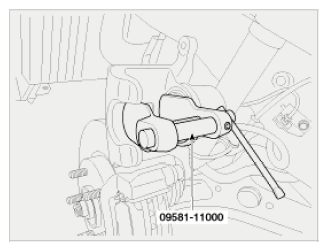

    Fig 1: Installing Brake Caliper Assembly
    G09133848Courtesy of HYUNDAI MOTOR AMERICA
  3. After installation, bleed the brake system.

    (Refer to BRAKE SYSTEM BLEEDING )
