Front Brake Pads
WARNING: This page is about a different car, the 2014 Hyundai Veloster and 2013 Hyundai Veloster. However, it is still accessible from the selected car via links, so may be relevant.

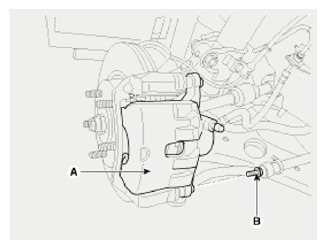

- Loosen the guide rod bolt (B) and pivot the caliper (A) up out of the way.
Tightening torque:
21.6 ~ 31.4 N.m (2.2 ~ 3.2 kgf.m, 15.9 ~ 23.1 lb-ft)

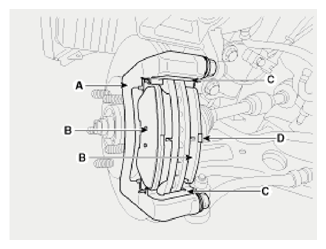

- Replace pad shim (D), pad retainers (C) and brake pads (B) in the caliper carrier (A).
