Repair Procedures: Inspection

WARNING: This page is about a different car, the 2014 Hyundai Veloster and 2013 Hyundai Veloster. However, it is still accessible from the selected car via links, so may be relevant.

Check the audio remote control switch (A) for resistance between connector terminals in each switch position.

[LH-AUDIO]

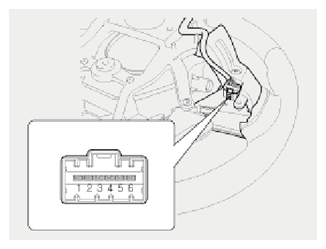

Fig 1: Identifying Audio Remote Control Switch (LH-Audio)

Courtesy of HYUNDAI MOTOR AMERICA

[RH-TRIP]

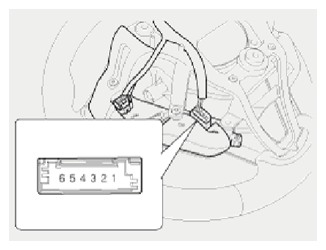

Fig 2: Identifying Audio Remote Control Switch (LH-Trip)

Courtesy of HYUNDAI MOTOR AMERICA

CONNECTOR TERMINAL SPECIFICATION (AUDIO)

Switch	Connector terminal	Resistance (±5%)
Seek up	3-5	430 Ω
Seek down	3-5	1.11 kΩ
Mode	3-5	2.11 kΩ
Volume up	3-5	4.61 kΩ
Volume down	3-5	6.81 kΩ

CONNECTOR TERMINAL SPECIFICATION (CRUISE)

Switch	Connector terminal	Resistance (±5%)
ON/OFF	3-4	880 Ω
Cancel	3-4	180 Ω
SET -	3-4	330 Ω
SET +	3-4	550 Ω

CONNECTOR TERMINAL SPECIFICATION (BLUETOOTH + VOICE)

Switch	Connector terminal	Resistance (±5%)
Voice	3-4	10.71 kΩ
End of call	3-4	18.91 kΩ
Send	3-4	40.91 kΩ

CONNECTOR TERMINAL SPECIFICATION (TRIP + RESET)

Switch	Connector terminal	Resistance (±5%)
Trip	3-4	2.54 kΩ
Reset	3-4	5.54 kΩ
