Components and Components Location: Components

WARNING: This page is about a different car, the 2014 Hyundai Veloster and 2013 Hyundai Veloster. However, it is still accessible from the selected car via links, so may be relevant.

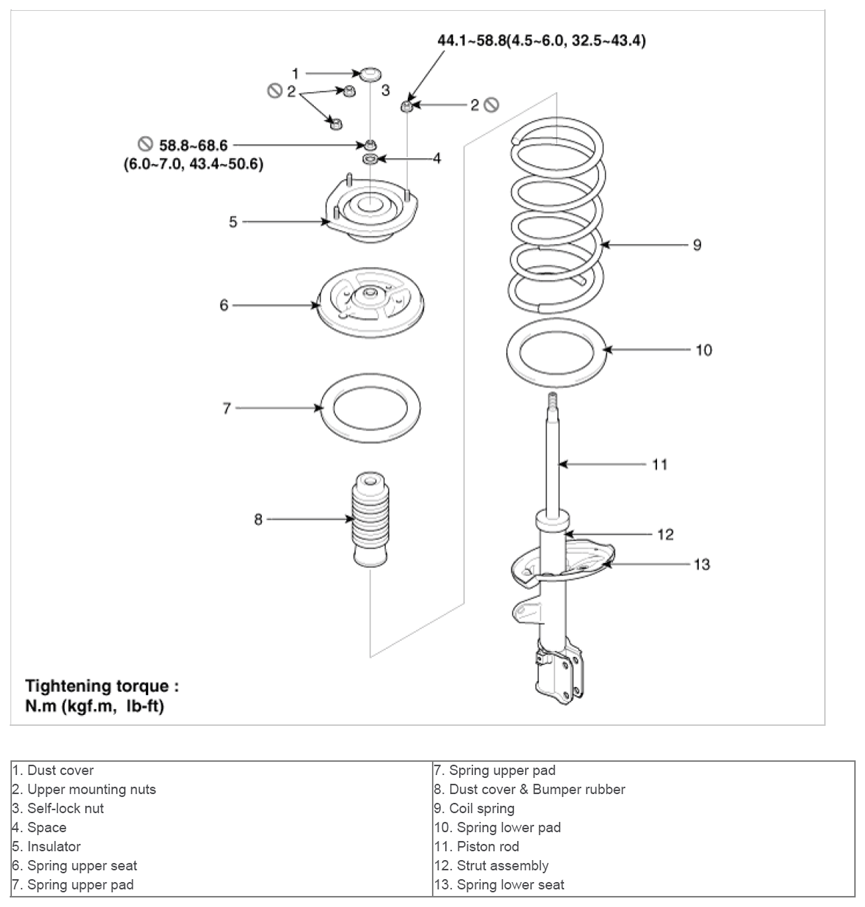

Fig 1: Front Strut Assembly Related Replacement Components With Torque Specifications
G09135048Courtesy of HYUNDAI MOTOR AMERICA
CAUTION:
  • Tighten under unladen condition
  • Fix the strut rod end and tighten the nut
