Repair Procedures: Removal

  1. Remove the ignition key from the vehicle.
  2. Disconnect the battery negative cable and wait for at least three minutes before beginning work.
  3. Remove the floor console.

    (Refer to the "CONSOLE ")

  4. Pull up the lock, of the SRSCM connector, the disconnect the connector (A and B).

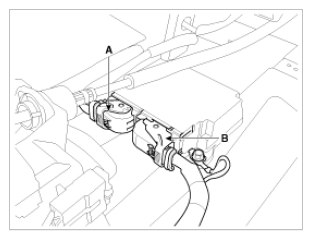

    Fig 1: Identifying SRSCM Connectors
    G08807468Courtesy of HYUNDAI MOTOR AMERICA
  5. Remove the SRSCM mounting bolt and nuts from the SRSCM, then remove the SRSCM.
