Repair Procedures: Replacement

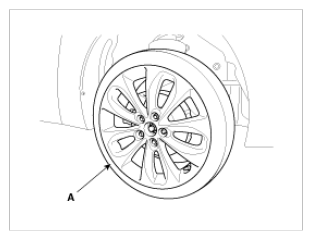

Remove the front wheel & tire.
Tightening torque:

88.3 ~ 107.9N.m (9.0 ~ 11.0kgf.m, 65.1 ~ 79.6lb-ft)

Fig 1: Identifying Front Wheel & Tire
Courtesy of HYUNDAI MOTOR AMERICA

CAUTION: Be careful not to damage to the hub bolts when removing the front wheel & tire.
Disconnect the stabilizer link (B) with the front strut assembly (A) after loosening the nut.
Tightening torque:

98.1 ~ 117.7N.m (10.0 ~ 12.0kgf.m, 72.3 ~ 86.8lb-ft)

Fig 2: Identifying Stabilizer Link With Mounting Nut
Courtesy of HYUNDAI MOTOR AMERICA

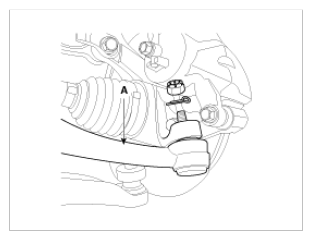

Remove the tie rod end ball joint (A) from the knuckle by using SST (09568-34000).
Tightening torque:

23.5 ~ 33.3N.m (2.5 ~ 3.4kgf.m, 19.4 ~ 24.6lb-ft)

Fig 3: Identifying Tie Rod End Ball Joint
Courtesy of HYUNDAI MOTOR AMERICA

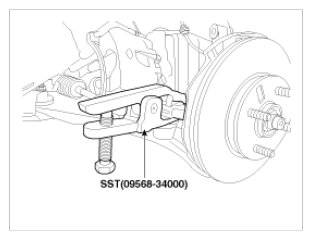

Fig 4: Identifying Special Service Tool
Courtesy of HYUNDAI MOTOR AMERICA
Remove the lower arm (A) from the knuckle by using SST (09568-34000).
Tightening torque:

78.5 ~ 88.3N.m (8.0 ~ 9.0kgf.m, 57.9 ~ 65.1lb-ft)

Fig 5: Removing Lower Arm From Knuckle Using Special Tool
Courtesy of HYUNDAI MOTOR AMERICA
Loosen the bolt (A) and then disconnect the universal joint assembly from the pinion of the steering gear box.
Tightening torque:

32.4 ~ 37.3N.m (3.3 ~ 3.8kgf.m, 23.9 ~ 27.5lb-ft)

Fig 6: Identifying Universal Joint Assembly With Mounting Bolt
Courtesy of HYUNDAI MOTOR AMERICA
CAUTION:
- Lock the steering wheel in the straight ahead position to prevent the damage of the clock spring inner cable when you handle the steering wheel.
- Must be replaced with new bolts when assembling. (SEAL-LOCK has been processed)

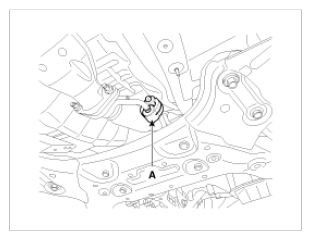

Remove the rubber hanger (A).

Fig 7: Identifying Rubber Hanger
Courtesy of HYUNDAI MOTOR AMERICA

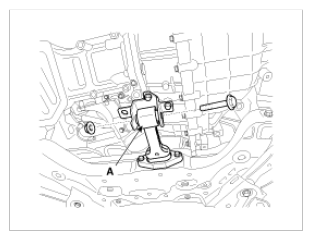

Loosen the roll rod (A) mounting bolts and nuts.
Tightening torque:

53.9 ~ 63.7N.m (5.5 ~ 6.5kgf.m, 39.8 ~ 47.0lb-ft)

Fig 8: Identifying Roll Rod With Mounting Bolts And Nuts
Courtesy of HYUNDAI MOTOR AMERICA

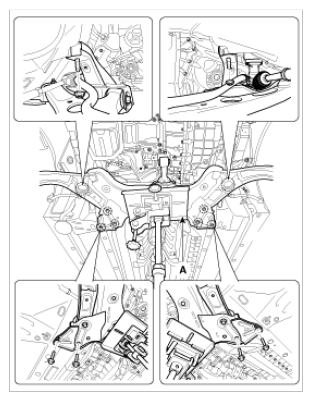

Loosen the bolts & nuts and then remove the front sub frame (A).
Tightening torque:

Sub frame mounting bolt & nut

156.9 ~ 176.5N.m (16.0 ~ 18.0kgf.m, 115.7 ~ 130.2lb-ft)

Sub frame stay mounting bolt

44.1 ~ 53.9N.m (4.5 ~ 5.5kgf.m, 32.5 ~ 39.8lb-ft)

Fig 9: Identifying Front Sub Frame With Mounting Bolts And Nuts
Courtesy of HYUNDAI MOTOR AMERICA
Remove the lower arm.
(Refer to - "Lower Arm ")
Remove the stabilizer bar.
(Refer to "FRONT STABILIZER BAR ")
Remove the steering gear box.
(Refer to "STEERING GEAR BOX ")
Installation is the reverse of removal.
Check the wheel alignment.
(Refer to - "TIRES/WHEELS ")
