Wheel Runout
- Jack up the vehicle and support it with jack stands.

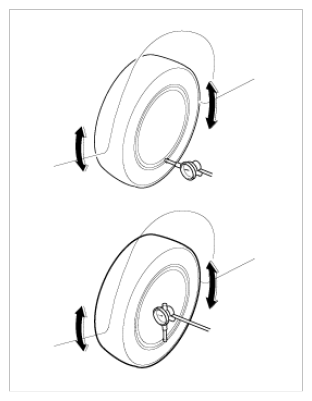

- Measure the wheel runout with a dial indicator as illustrated.
- Replace the wheel if the wheel runout exceeds the limit.
| Type |
Radius direction |
Axis direction |
| Aluminium |
0.3mm (0.01in) |
0.3mm (0.01in) |
