Components and Components Location: Components

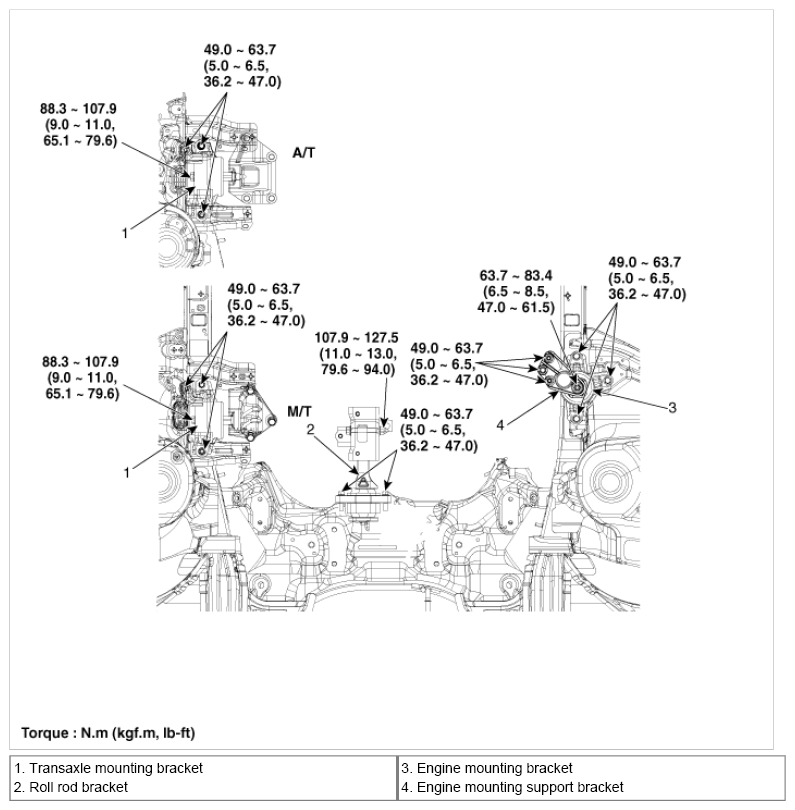

Fig 1: Engine Mounting Replacement Components With Torque Specifications
G08806505Courtesy of HYUNDAI MOTOR AMERICA
