Smart Key System
›
Components and Components Location
›
Component Location (1)
Component Location (1)

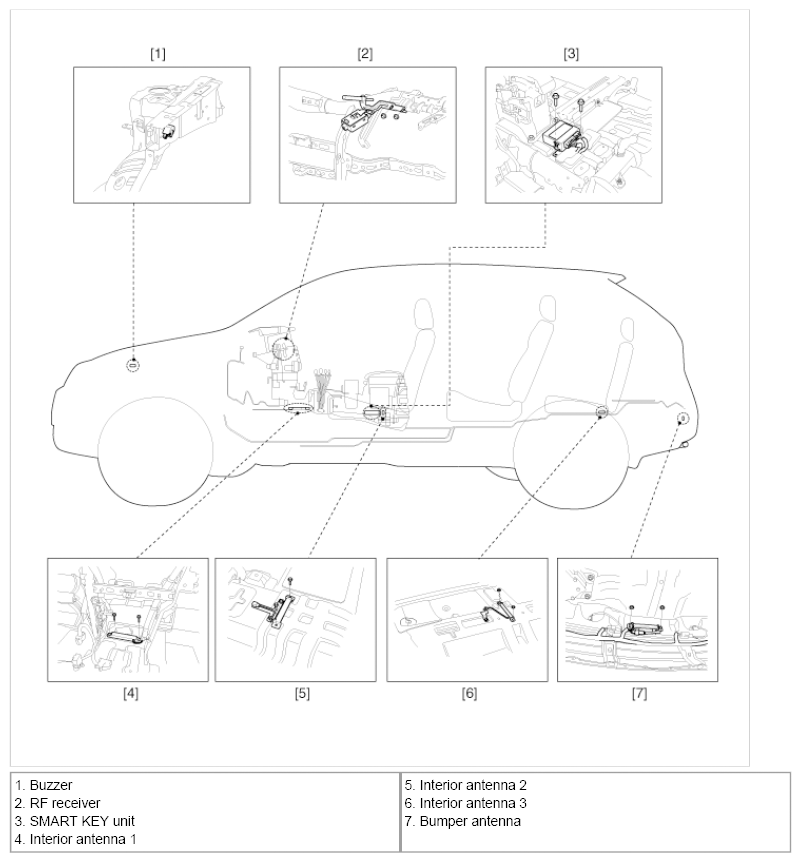

Fig 1: Identifying Smart Key System Components Location (1 Of 2)
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
