Lower Panel Replacement

  1. Remove the crash pad side cover.
  2. Remove the keyset bezel.
  3. After loosening the crash pad lower panel mounting screws, then remove the lower panel (A).

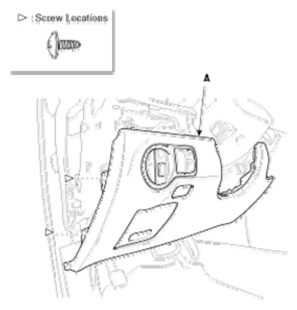

    Fig 1: Identifying Lower Panel
    G06857983Courtesy of HYUNDAI MOTOR CO.
  4. After loosening the mounting bolts, then remove the reinforcing panel (A).
    Fig 2: Identifying Reinforcing Panel
    G06857984Courtesy of HYUNDAI MOTOR CO.
  5. Installation is the reverse of removal.
