Assist Handle Replacement

NOTE:
  • When prying with a flat-tip screwdriver, wrap it with protective tape to prevent damage.
  • Put on gloves to protect your hands.
  1. Remove the assist handle mounting cap (A), and remove the screws, then remove the assist handle (B).

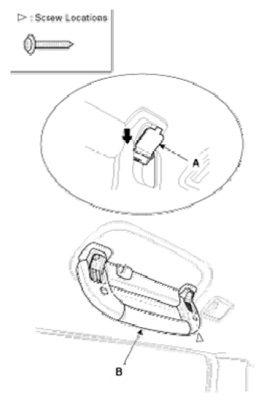

    Fig 1: Identifying Assist Handle Mounting Cap
    G06858006Courtesy of HYUNDAI MOTOR CO.
  2. Installation is the reverse of removal.
