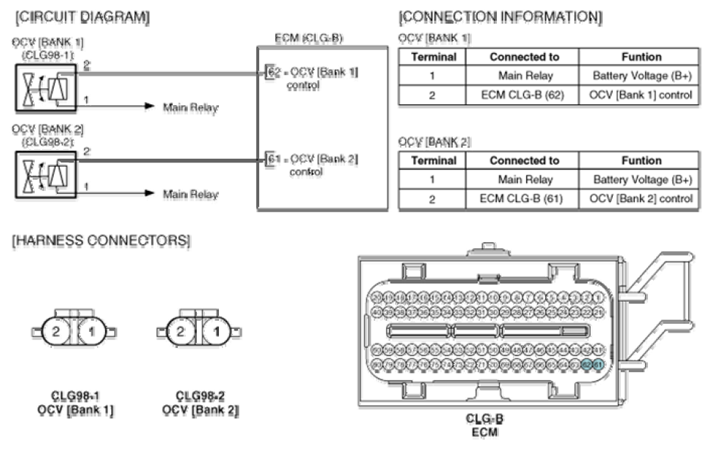

Home › Hyundai › 2012 › Veracruz GLS, AWD › Repair and Diagnosis › Engine Performance › Engine Control Systems › Engine Control System › CVVT Oil Control Valve (OCV) › Schematic Diagrams › Circuit Diagram
