Mass Air Flow Sensor (MAFS)
›
Schematic Diagrams
›
Circuit Diagram
Circuit Diagram

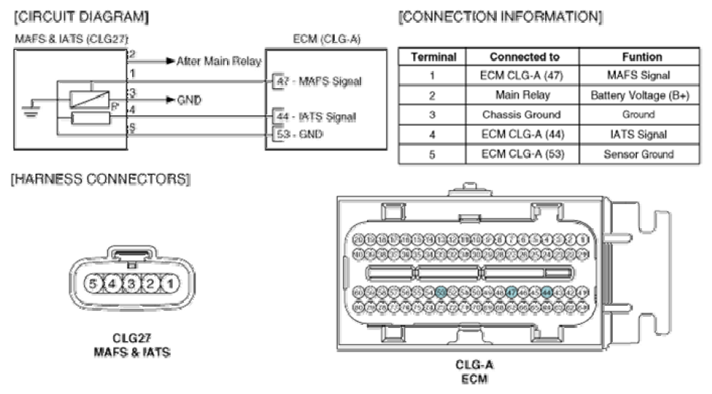

Fig 1: Mass Air Flow Sensor - Circuit Diagram
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
