Components and Components Location: Components: Notes

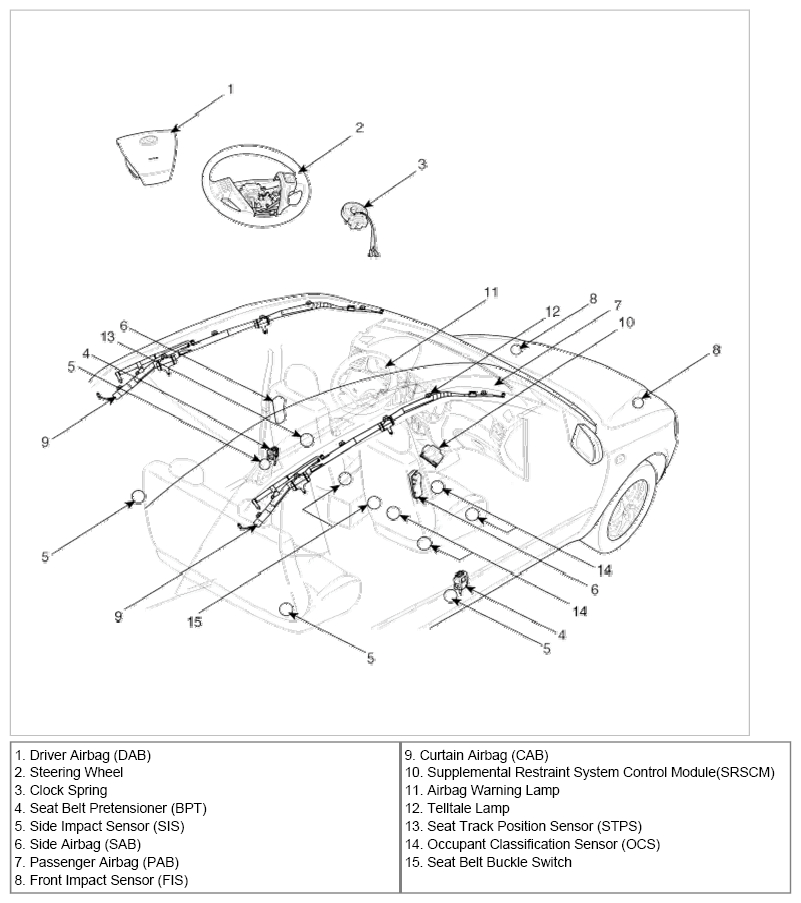

Fig 1: Identifying SRS System Components
G06857562Courtesy of HYUNDAI MOTOR CO.
