Engine Mounting: Troubleshooting

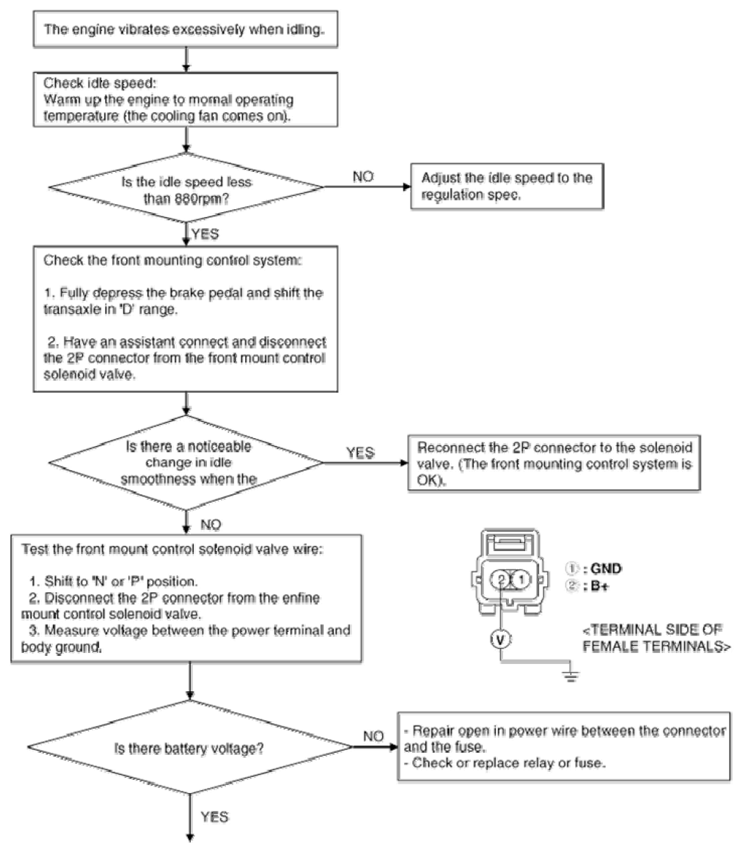

Fig 1: Troubleshooting Flow Chart (1 Of 3)

Courtesy of HYUNDAI MOTOR CO.

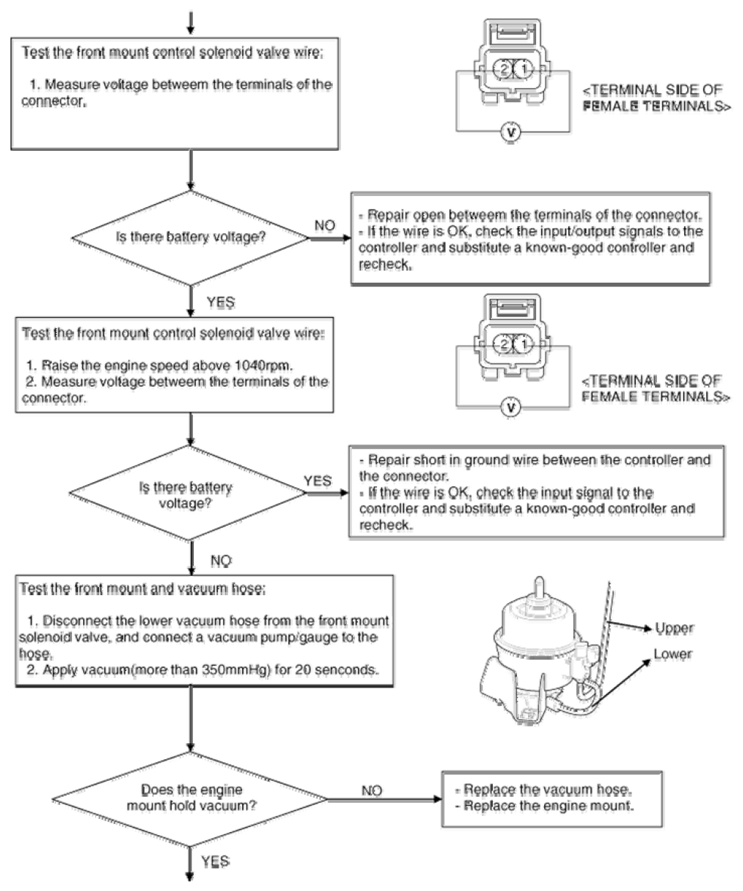

Fig 2: Troubleshooting Flow Chart (2 Of 3)

Courtesy of HYUNDAI MOTOR CO.

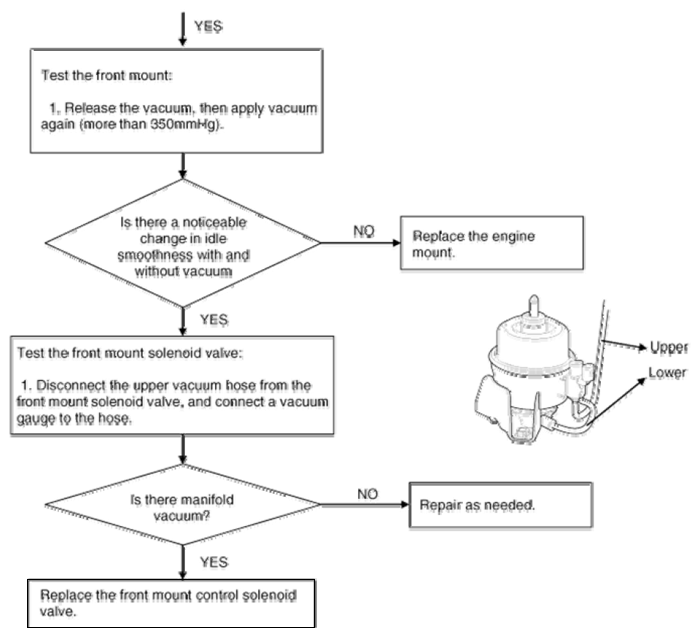

Fig 3: Troubleshooting Flow Chart (3 Of 3)

Courtesy of HYUNDAI MOTOR CO.
