Engine Control System
›
Components and Components Location
›
Component Location
Component Location

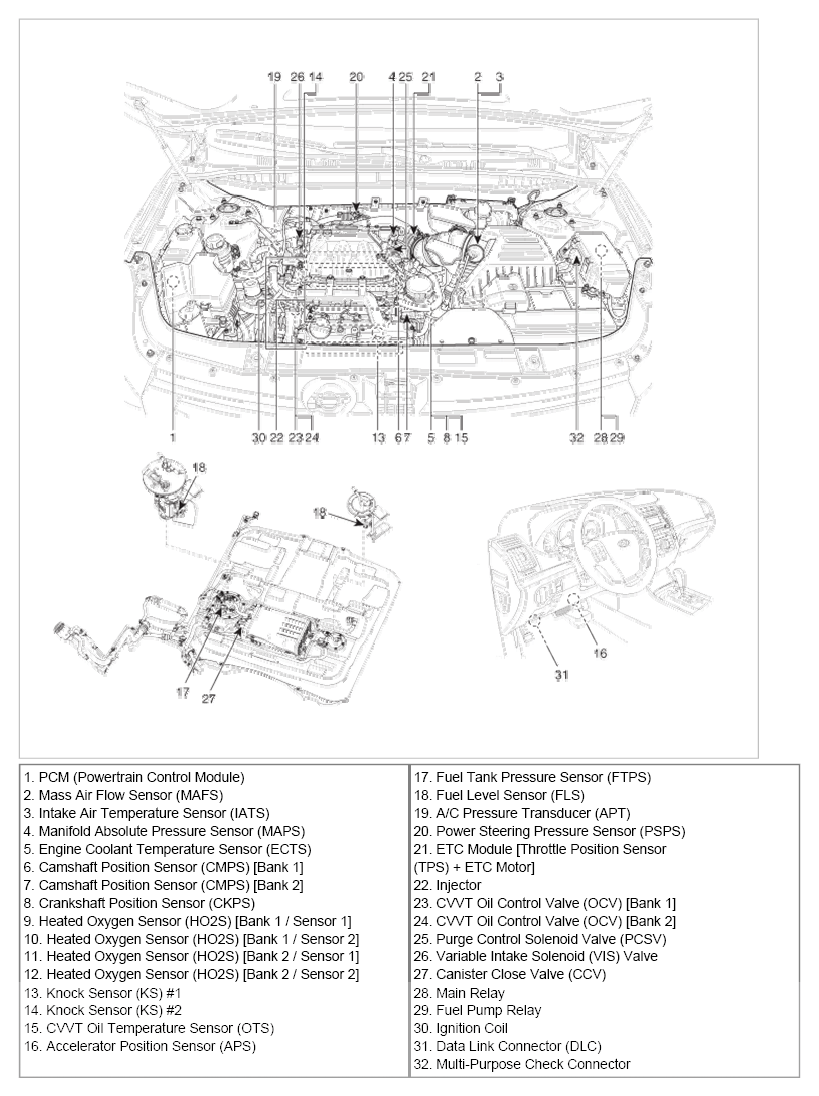

Fig 1: Identifying Engine Control System Components (1 Of 4)
Courtesy of HYUNDAI MOTOR CO.

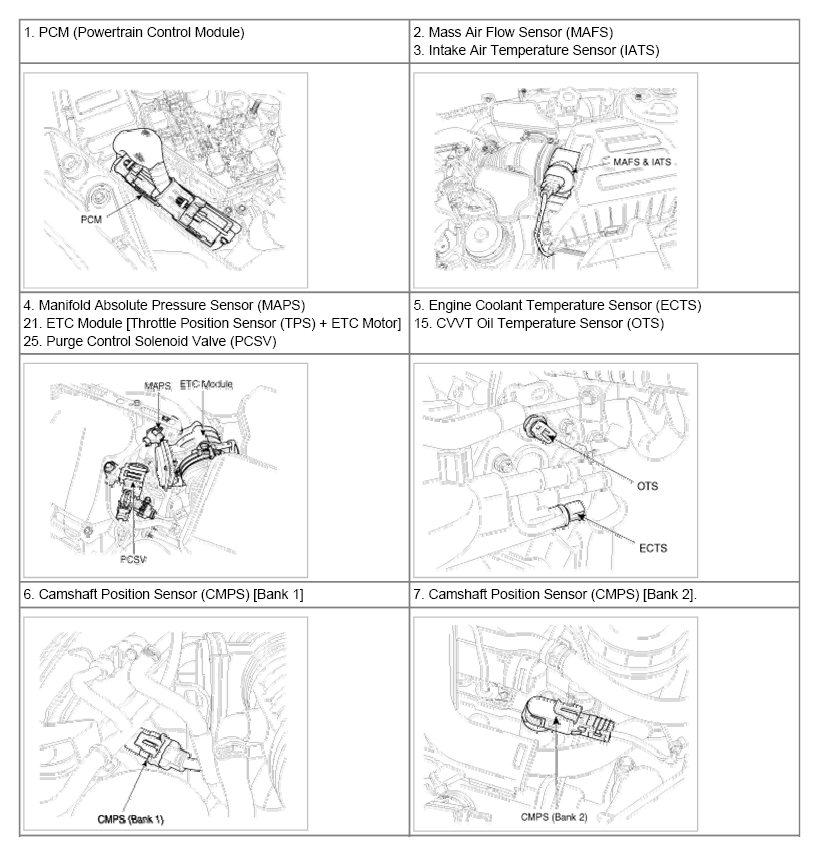

Fig 2: Identifying Engine Control System Components (2 Of 4)
Courtesy of HYUNDAI MOTOR CO.

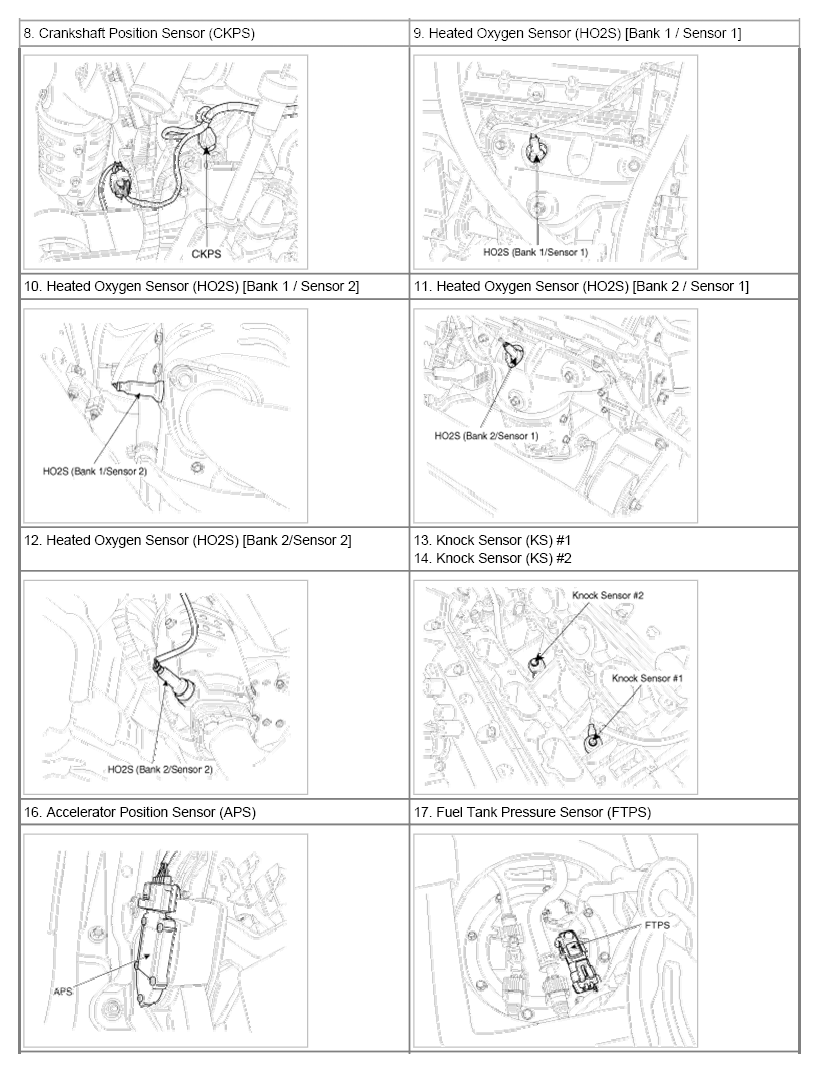

Fig 3: Identifying Engine Control System Components (3 Of 4)
Courtesy of HYUNDAI MOTOR CO.

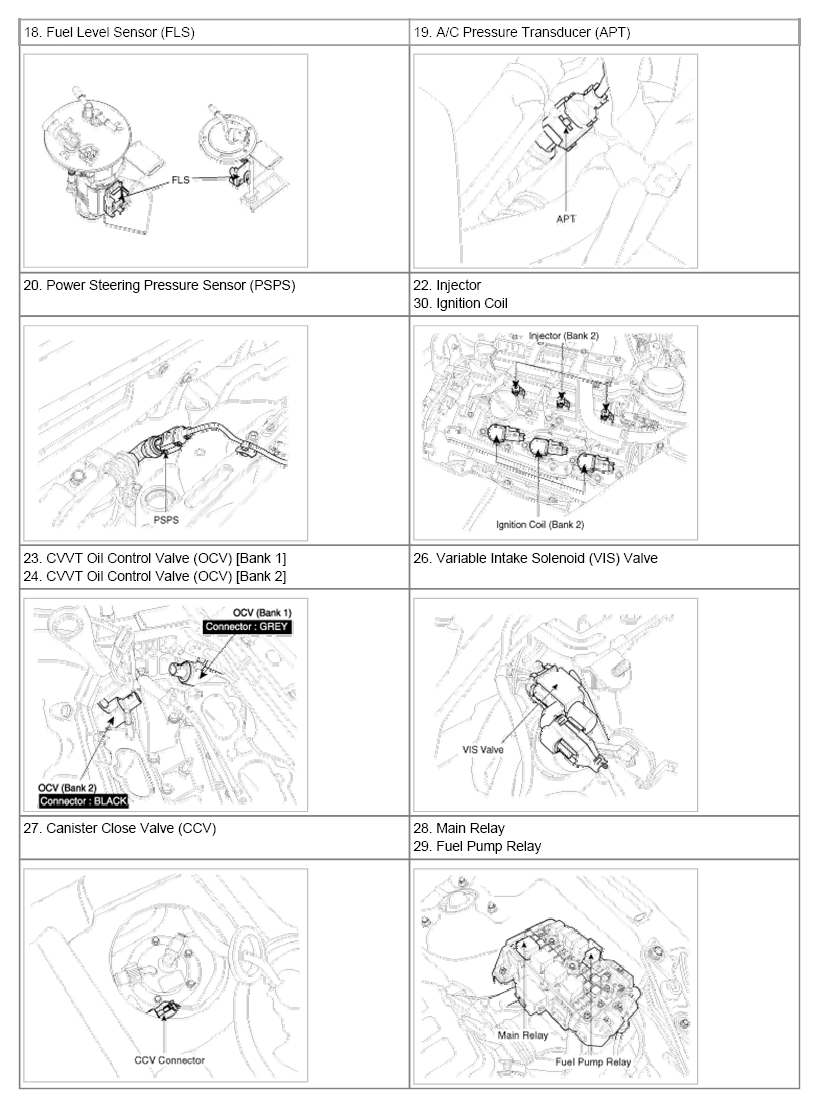

Fig 4: Identifying Engine Control System Components (4 Of 4)
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
