RF Receiver

Disconnect the negative (-) battery terminal.
Remove the glove box.
(Refer to GLOVE BOX REPLACEMENT )

Fig 1: Identifying Glove Box
Courtesy of HYUNDAI MOTOR CO.

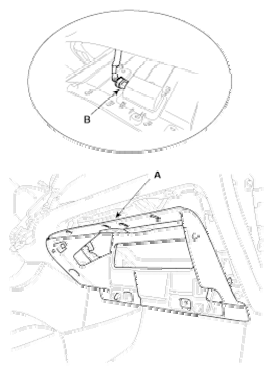

After loosening the mounting screws and bolts, then remove the glove box housing (A).
Disconnect the connector (B).

(Refer to GLOVE BOX REPLACEMENT )

Fig 2: Identifying Glove Box Housing
Courtesy of HYUNDAI MOTOR CO.
After loosening the mounting nuts (2EA), then remove the connector.

Fig 3: Identifying Mounting Nuts
Courtesy of HYUNDAI MOTOR CO.
