Smart Key Unit

Disconnect the negative (-) battery terminal.

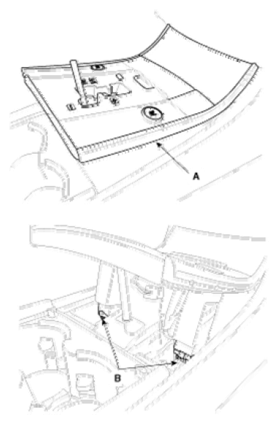

Remove the console under cover (A) and connectors (B).
(Refer to CONSOLE )

Fig 1: Identifying Console Under Cover
Courtesy of HYUNDAI MOTOR CO.
After loosening the console mounting screws, remove the floor console assembly (A).
(Refer to FLOOR CONSOLE REPLACEMENT )

Fig 2: Identifying Floor Console Assembly
Courtesy of HYUNDAI MOTOR CO.
After loosening the smart key unit mounting bolts (B) and connector, remove the smart key unit (A).
