Hyundai
›
2012
›
Veracruz Limited, AWD
›
Repair and Diagnosis
›
Body & Frame
›
Door Locks
›
Smart Key System
›
Smart Key Unit
›
Schematic Diagrams
›
Circuit Diagram
Circuit Diagram

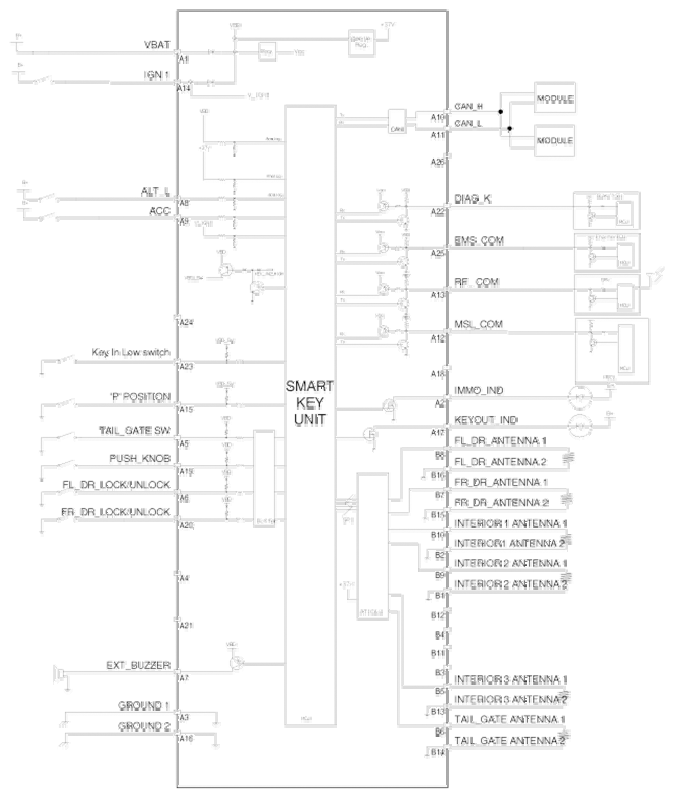

Fig 1: Smart Key Unit - Circuit Diagram
