Circuit Diagram

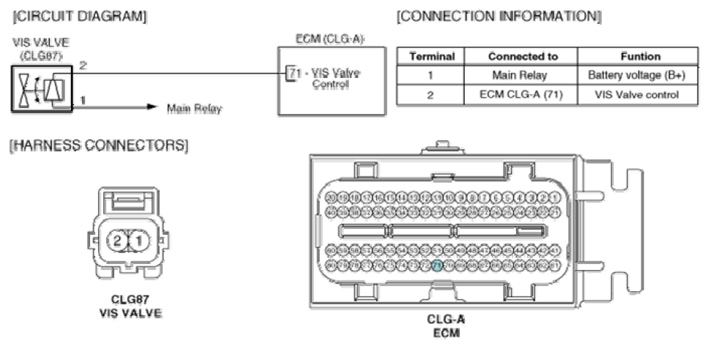

Fig 1: Variable Intake Solenoid Valve - Circuit Diagram
G06861394Courtesy of HYUNDAI MOTOR CO.
