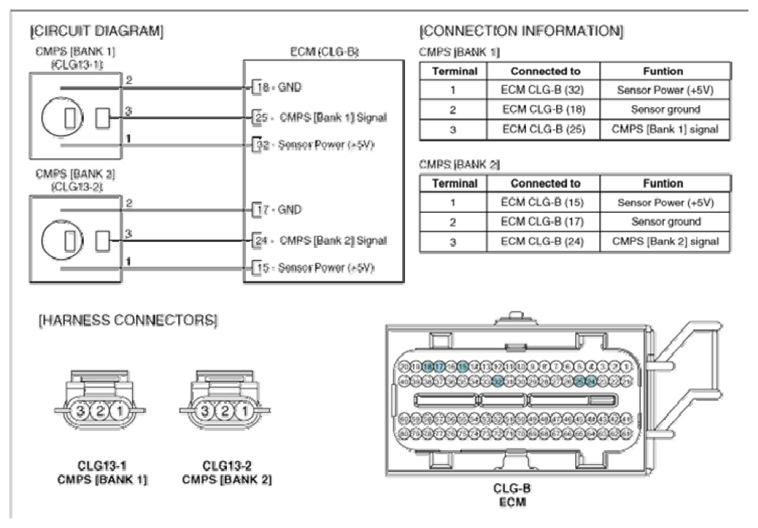

Home › Hyundai › 2012 › Veracruz Limited, FWD › Repair and Diagnosis › Engine Performance › Engine Control Systems › Engine Control System › Camshaft Position Sensor (CMPS) › Schematic Diagrams › Circuit Diagram
