Home › Hyundai › 2013 › Azera › Repair and Diagnosis (Single Page) › Engine Mechanical › Mechanical › Cylinder Head Assembly › CVVT Assembly › Components And Components Location › Components

Components And Components Location: Components

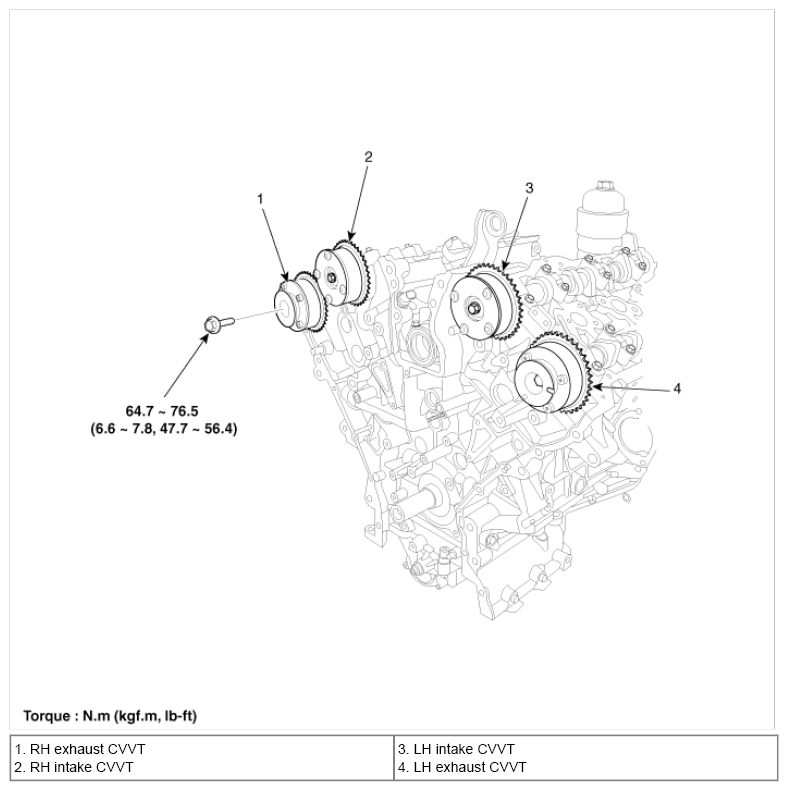

Fig 1: CVVT Assembly With Torque Specifications
G08809195Courtesy of HYUNDAI MOTOR AMERICA
