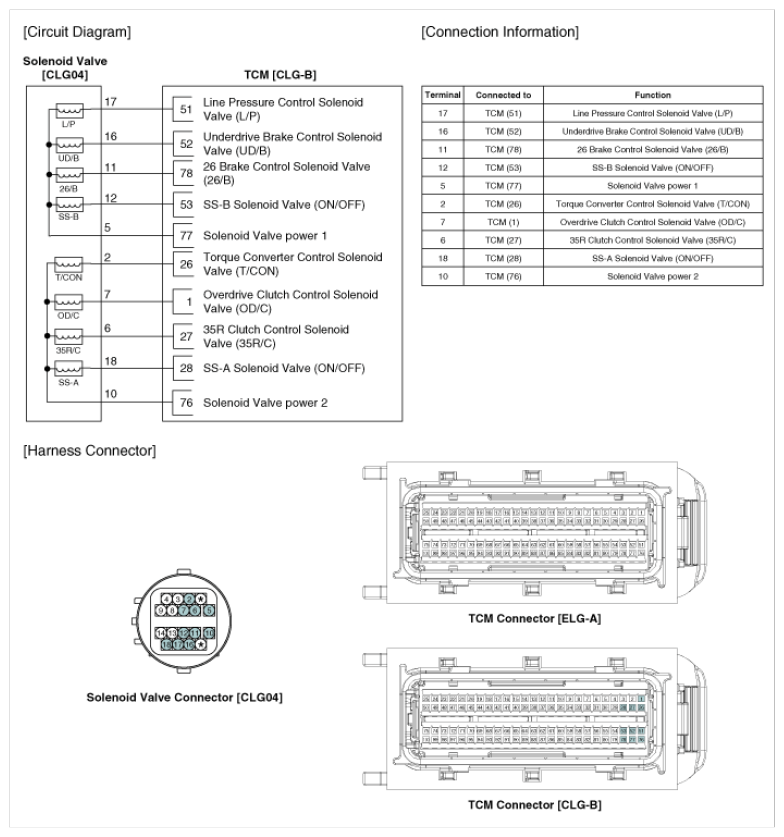

Home › Hyundai › 2013 › Azera › Repair and Diagnosis › Transmission › Transmission Control Systems › Automatic Transaxle Control System › 26 Brake Control Solenoid Valve (26/B_VFS) › Schematic Diagrams › Circuit Diagram
