Repair Procedures: Installation

Installation is the reverse of removal.
NOTE:
- When installing, apply the ATF oil or white vaseline to the O-ring (A) not to be damaged.

  Fig 1: Identifying Solenoid Valve O-Rings
  Courtesy of HYUNDAI MOTOR AMERICA
- Adding automatic transaxle fluid.
  (Refer to "FLUID ")
- Use new valve body gasket (A).

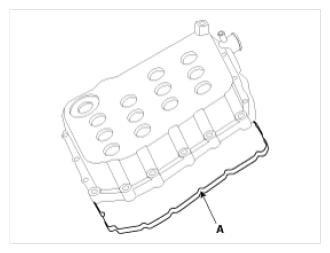

  Fig 2: Identifying Valve Body Gasket
  Courtesy of HYUNDAI MOTOR AMERICA
