Antenna Status Check

  1. Connect the cable of GDS to the data link connector in driver side crash pad lower panel.
  2. Select the "Antenna Status Check".

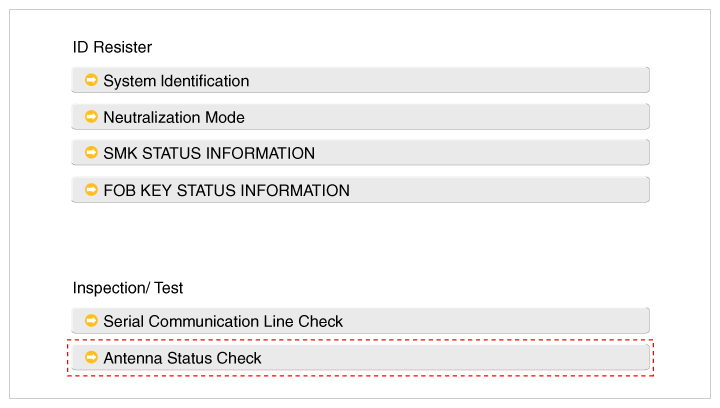

    Fig 1: Screen Display - Id Resister And Inspection/Test
    G10243882Courtesy of HYUNDAI MOTOR AMERICA
  3. After IG ON, select the "Antenna Status Check".

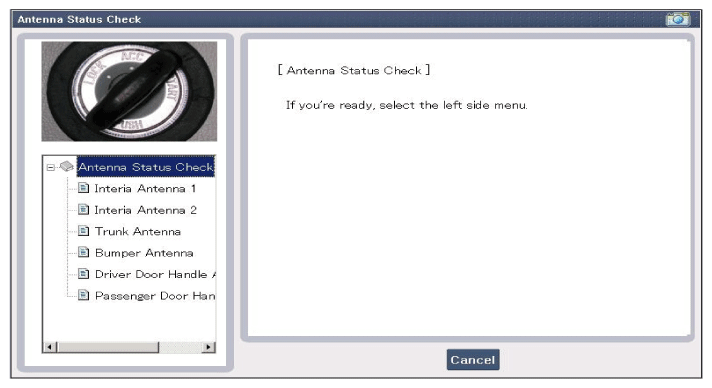

    Fig 2: Screen Display - Antenna Status Check
    G10243883Courtesy of HYUNDAI MOTOR AMERICA
  4. Set the smart key near the related antenna and operate it with a GDS.

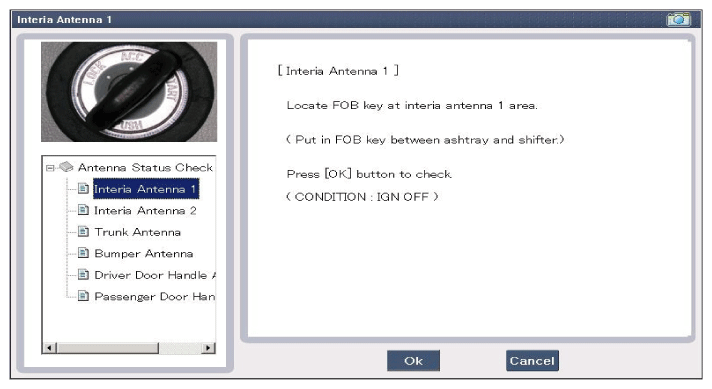

    Fig 3: Screen Display - Interior Antenna 1
    G10243884Courtesy of HYUNDAI MOTOR AMERICA

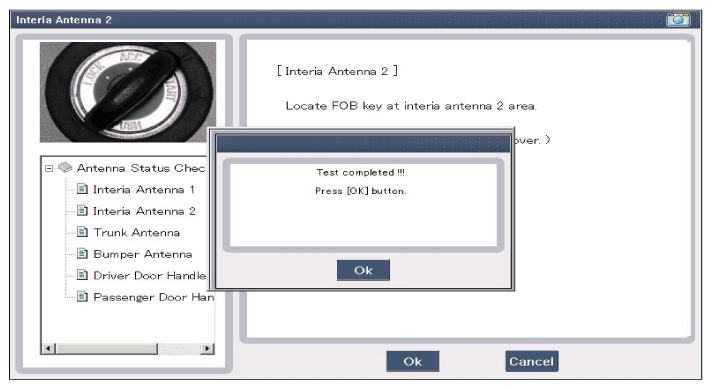

    Fig 4: Screen Display - Interior Antenna 2
    G10243885Courtesy of HYUNDAI MOTOR AMERICA
  5. If the smart key runs normal, the related antenna, smart key (transmission, reception) and exterior receiver are normal.
  6. Antenna status
    1. INTERIOR Antenna 1
    2. INTERIOR Antenna 2
    3. Trunk antenna
    4. BUMPER/Antenna
    5. DRV_DR Antenna
    6. AST_DR Antenna
