Components and Components Location: Components

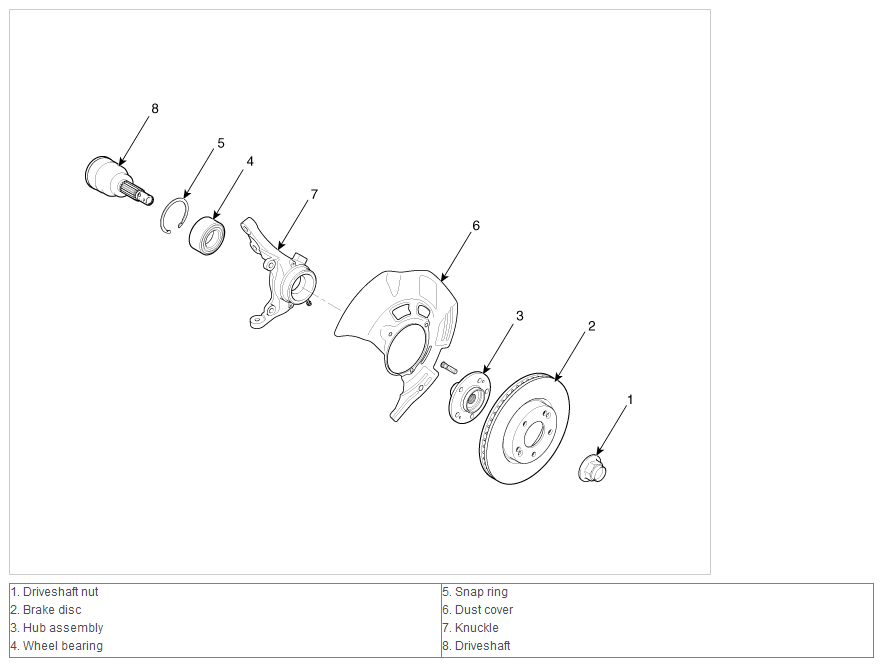

Fig 1: Front Axle Assembly Components Locations
G10242773Courtesy of HYUNDAI MOTOR AMERICA
