Home › Hyundai › 2013 › Elantra GLS, Automatic Trans › Repair and Diagnosis › Electrical › Charging Systems › Charging System › Alternator › Components and Components Location › Components

Components and Components Location: Components

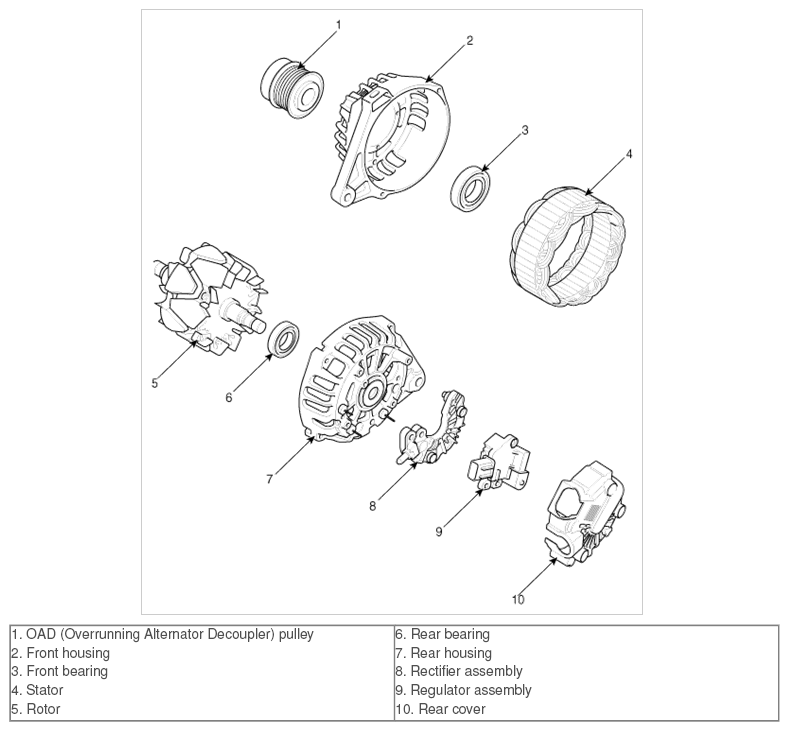

Fig 1: Alternator Components
G10234397Courtesy of HYUNDAI MOTOR AMERICA
