Components and Components Location: Components

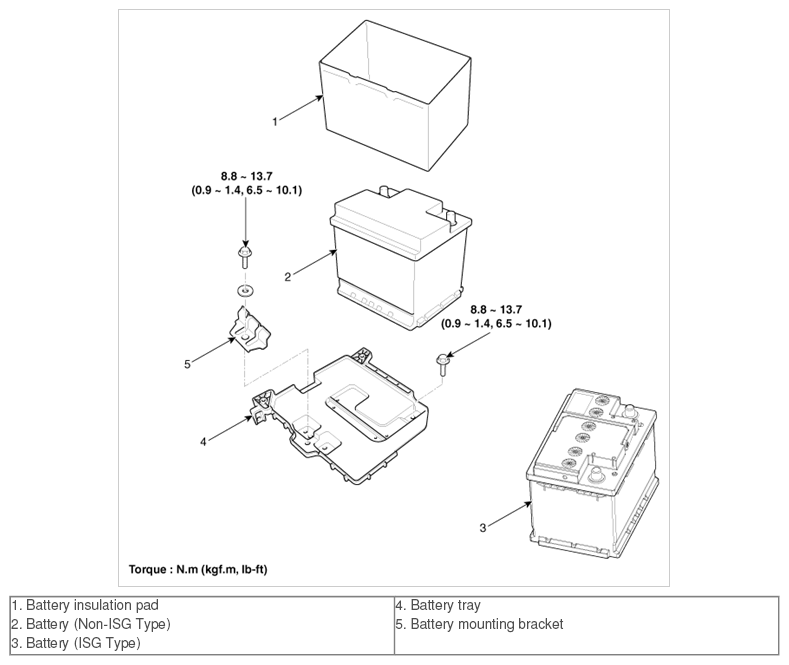

Fig 1: Battery Components With Torque Specifications
G10234419Courtesy of HYUNDAI MOTOR AMERICA
