Home › Hyundai › 2013 › Elantra GLS, Automatic Trans › Repair and Diagnosis › Electrical › Starter › Button Engine Start System › Start/Stop Button › Components and Components Location › Component

Components and Components Location: Component

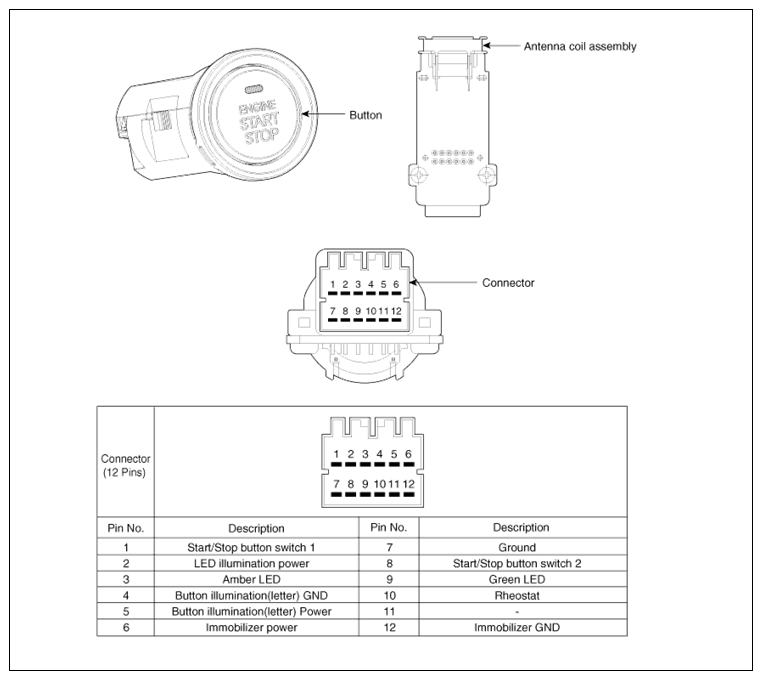

Fig 1: Start/Stop Button Components And Terminal Identification
G10244348Courtesy of HYUNDAI MOTOR AMERICA
