Crankshaft Position Sensor (CKPS): Troubleshooting: Waveform

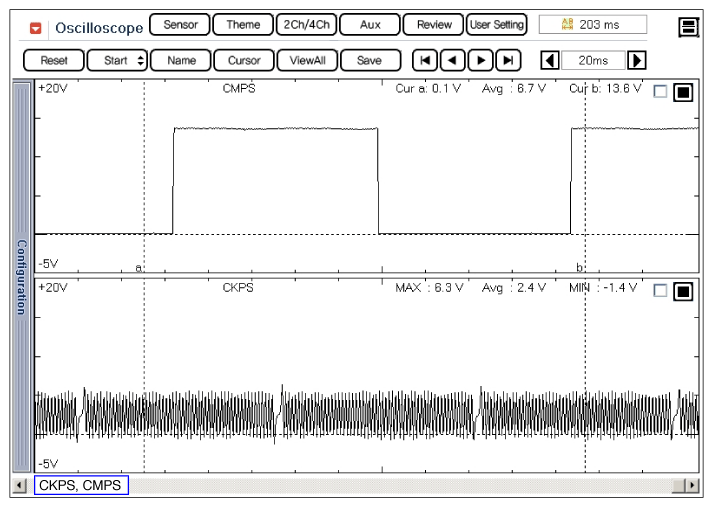

Fig 1: Screen Display - Oscilloscope Waveform (1 Of 2)
G10234871Courtesy of HYUNDAI MOTOR AMERICA

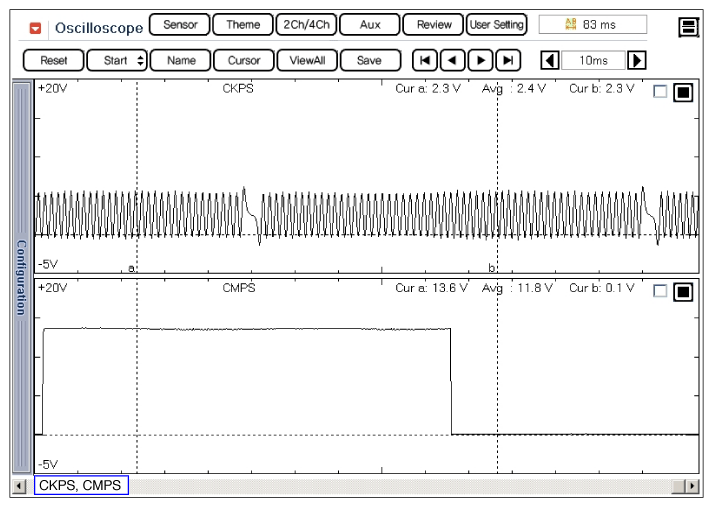

Fig 2: Screen Display - Oscilloscope Waveform (2 Of 2)
G10234872Courtesy of HYUNDAI MOTOR AMERICA
