Circuit Diagram: (A/T)

2013

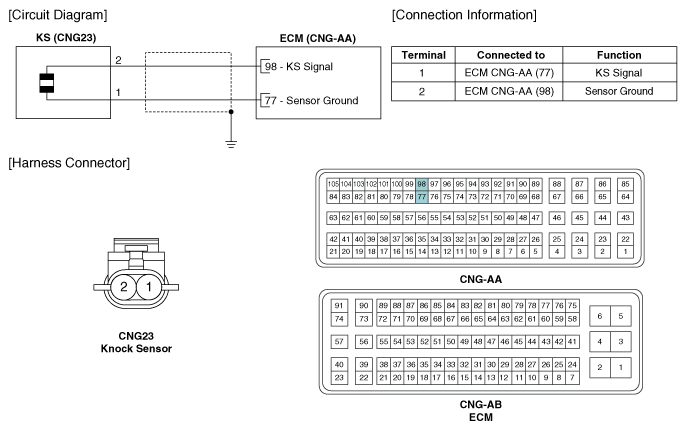

Fig 1: Knock Sensor Circuit Diagram (A/T)
G10234884Courtesy of HYUNDAI MOTOR AMERICA

2014

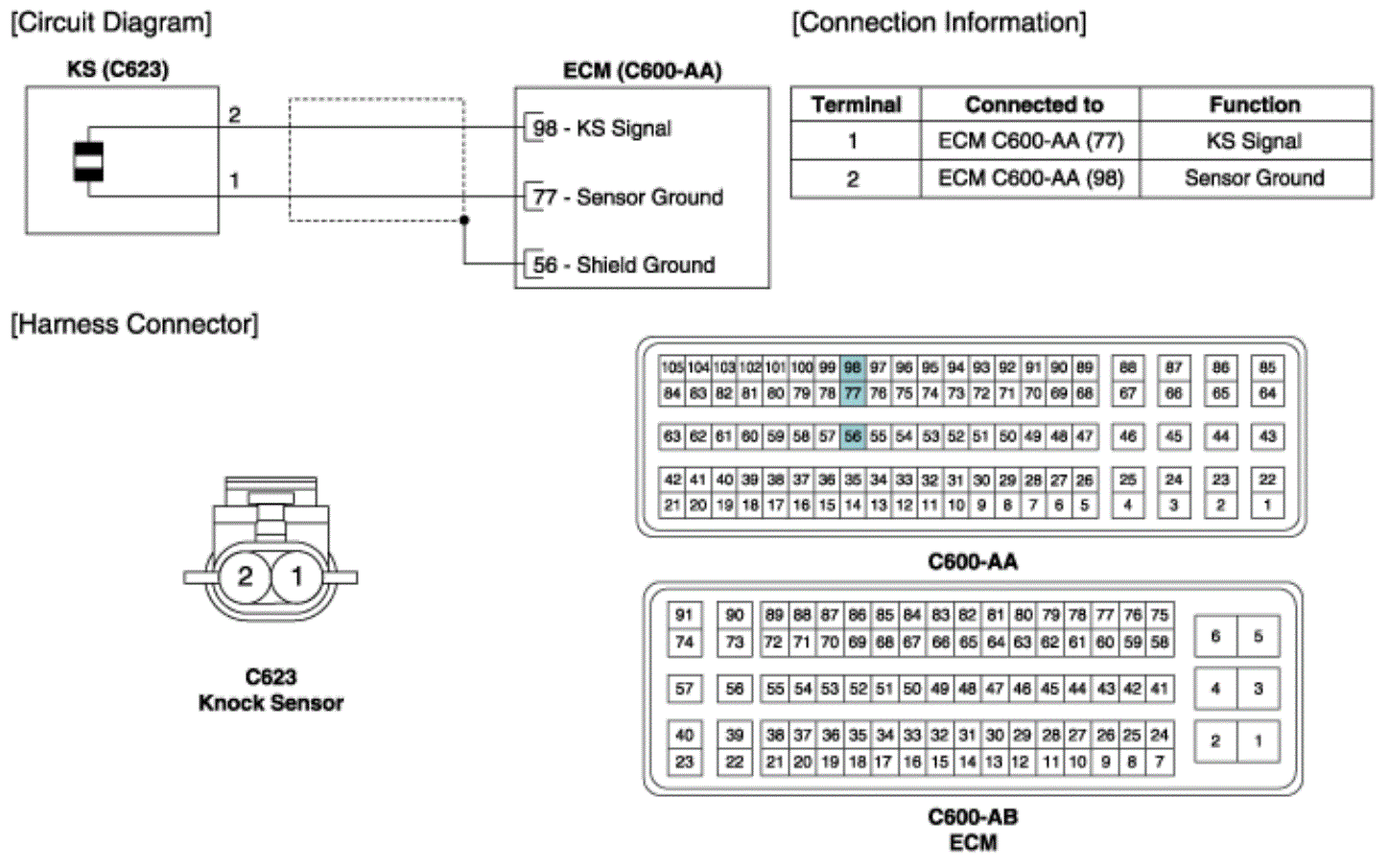

Fig 2: Knock Sensor Circuit Diagram (A/T)
G00559843Courtesy of HYUNDAI MOTOR AMERICA
