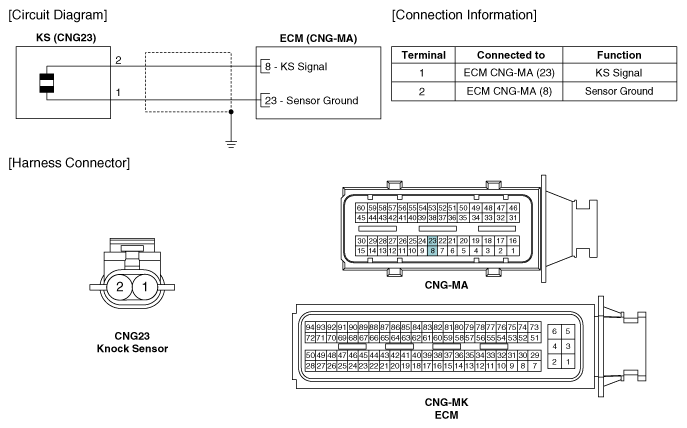

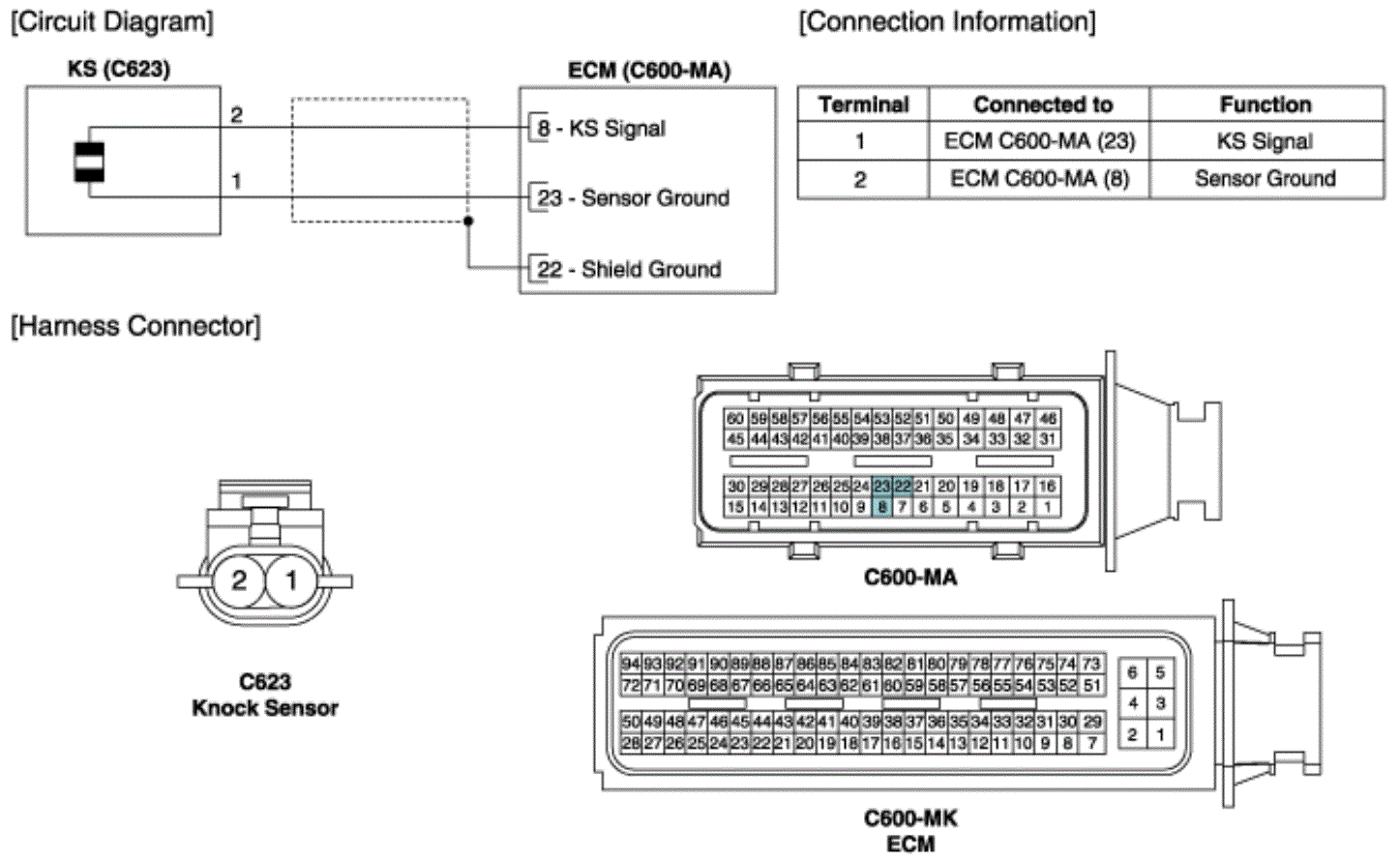

Home › Hyundai › 2013 › Elantra GLS, Automatic Trans › Repair and Diagnosis › Engine Performance › Engine Control Systems › Engine Control System › Knock Sensor (KS) › Schematic Diagrams › Circuit Diagram › (M/T)
