Components and Components Location: Components

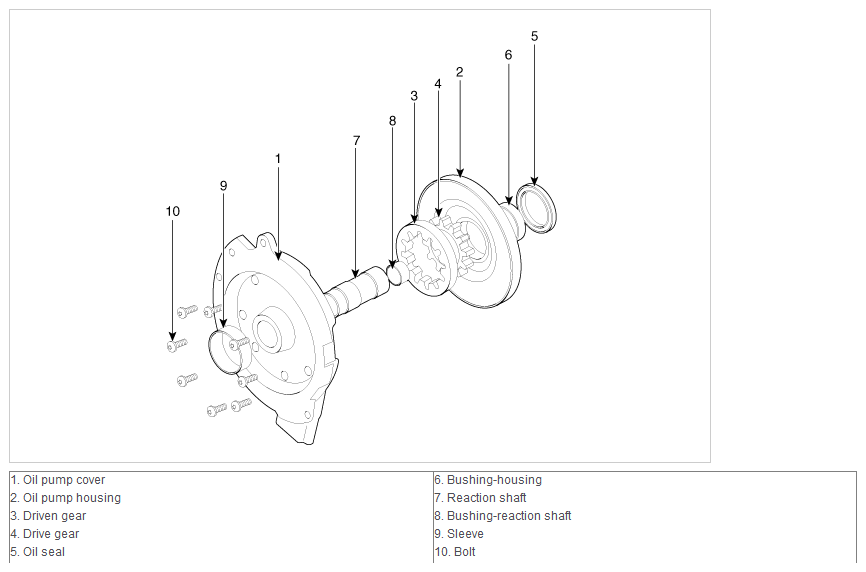

Fig 1: Automatic Transaxle Oil Pump Components
G10242738Courtesy of HYUNDAI MOTOR AMERICA
