Components and Components Location: Components

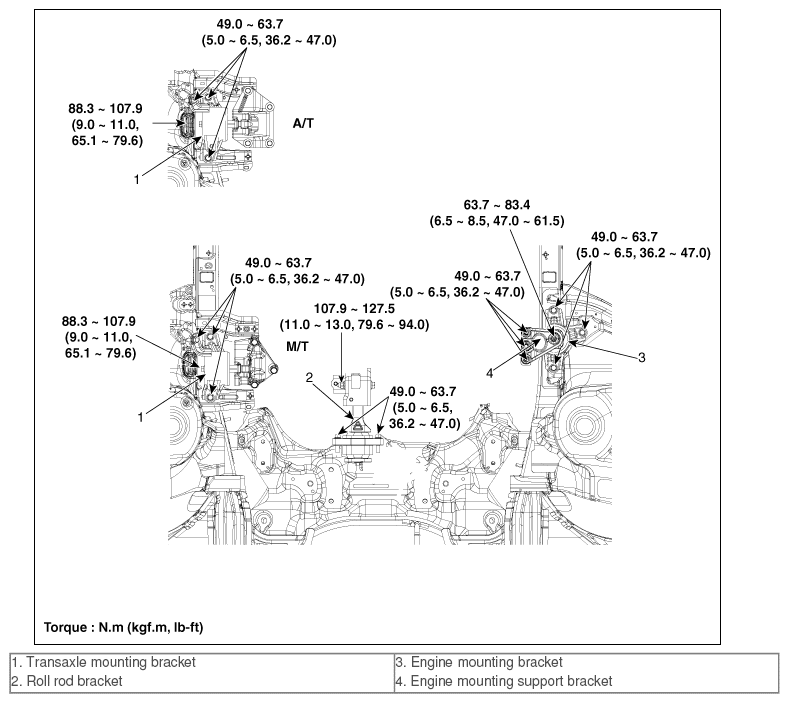

Fig 1: Engine Mounting Components And Locations With Torque Specifications
G10234003Courtesy of HYUNDAI MOTOR AMERICA
