Components and Components Location: Components

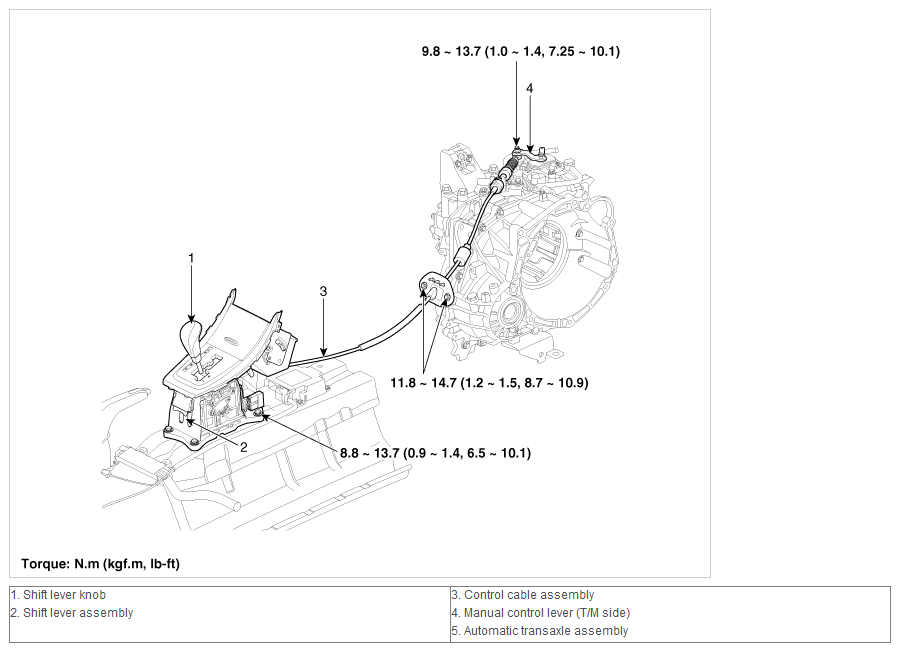

Fig 1: Shift Lever Assembly Components With Torque Specifications
G10243381Courtesy of HYUNDAI MOTOR AMERICA
