Circuit diagram: (M/T)

2013

Fig 1: Variable Charge Motion Actuator Circuit Diagram (M/T)
G10234936Courtesy of HYUNDAI MOTOR AMERICA

2014

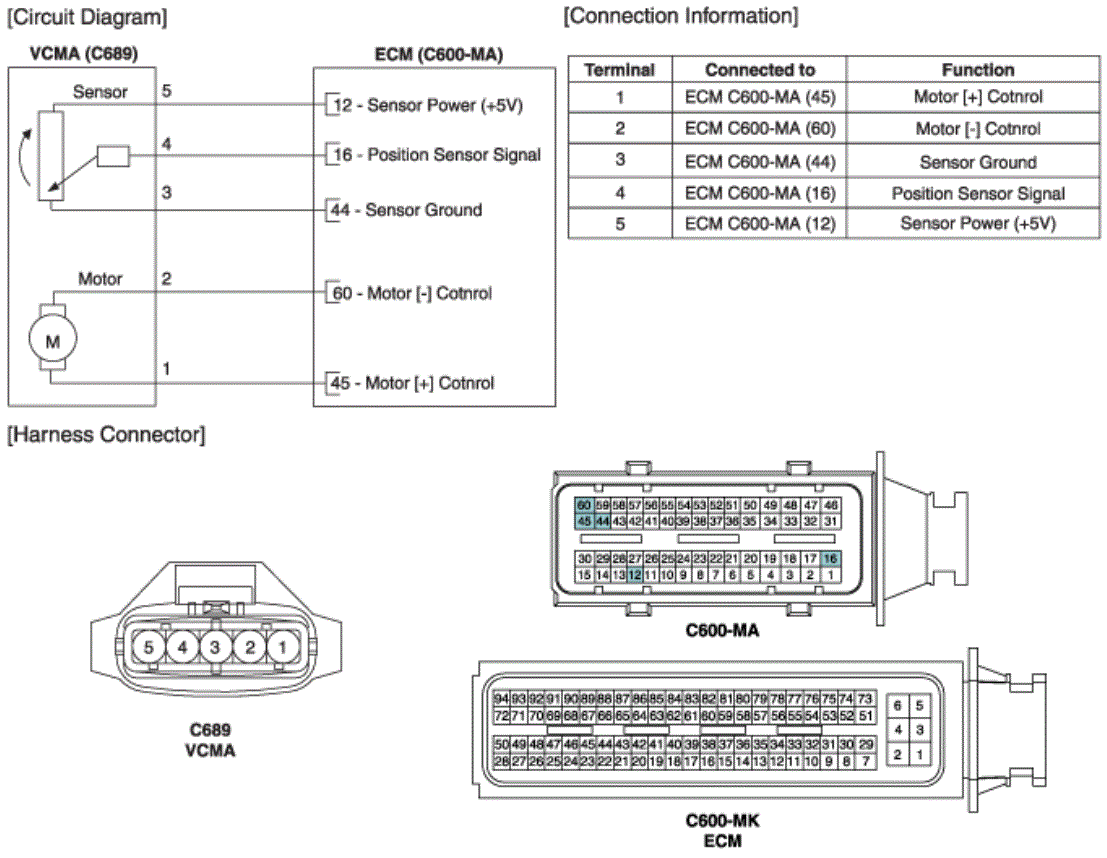

Fig 2: Variable Charge Motion Actuator Circuit Diagram (M/T)
G00559845Courtesy of HYUNDAI MOTOR AMERICA
