Components and Components Location: Components

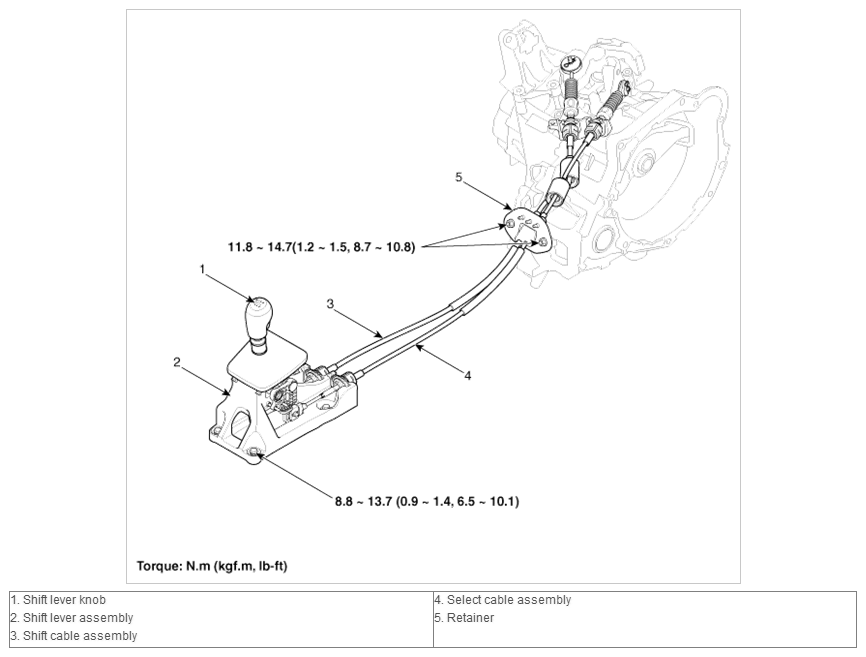

Fig 1: Manual Transaxle Control System Components Locations With Torque Specifications
G10234961Courtesy of HYUNDAI MOTOR AMERICA
