Repair procedures: Removal

Release the residual pressure in fuel line.
(Refer to Fuel Delivery System - "RELEASE RESIDUAL PRESSURE IN FUEL LINE ")
Remove the rear seat cushion.
(Refer to "REAR SEAT ASSEMBLY ")

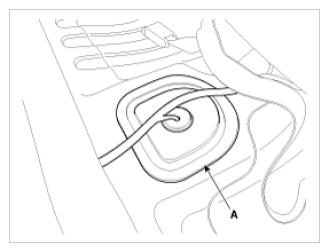

Remove the fuel pump service cover (A).

Fig 1: Identifying Fuel Pump Service Cover
Courtesy of HYUNDAI MOTOR AMERICA

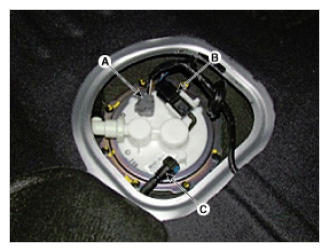

Disconnect the fuel pump connector (A) and the fuel tank pressure sensor connector (B).
Disconnect the fuel feed tube quick connector (C).

Fig 2: Identifying Fuel Pump Connector
Courtesy of HYUNDAI MOTOR AMERICA
Remove the rear - LH wheel & tire.
Lift the vehicle and support the fuel tank with a jack.

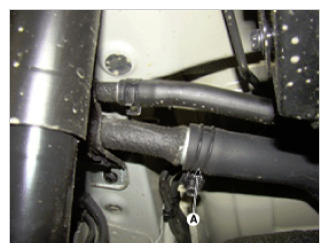

Disconnect the fuel filler hose (A).

Fig 3: Identifying Fuel Filler Hose
Courtesy of HYUNDAI MOTOR AMERICA
Remove the under cover (A) and the parking brake line (B).

Fig 4: Identifying Under Cover And Parking Brake Line
Courtesy of HYUNDAI MOTOR AMERICA

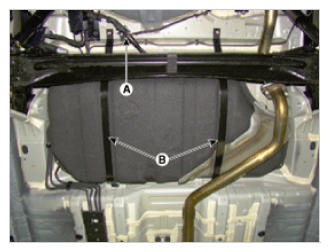

Disconnect the vapor tube quick-connector (A).
Remove the fuel tank from the vehicle after removing the fuel tank band (B).

Fig 5: Identifying Vapor Tube Quick-Connector
Courtesy of HYUNDAI MOTOR AMERICA
NOTE:
- When removing the fuel tank, the fuel tank must be tilted because of interfering with coupling.
