Circuit Diagram: (A/T)

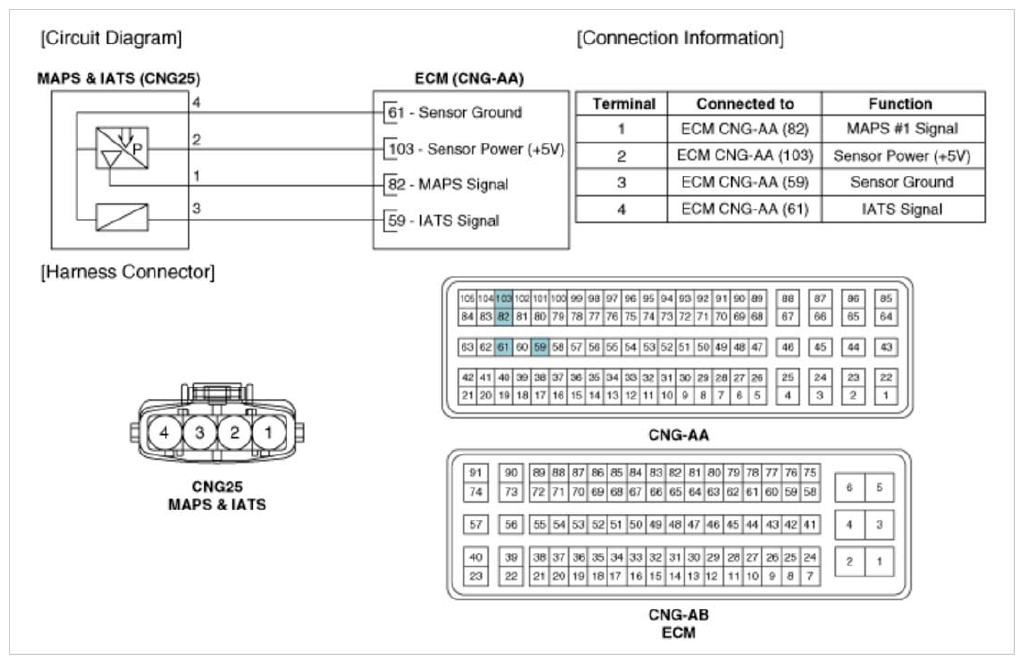

Fig 1: MPS And IATS - CNG 25 Schematic Diagrams (A/T)
G09885889Courtesy of HYUNDAI MOTOR AMERICA
