Components and Components Location: Components

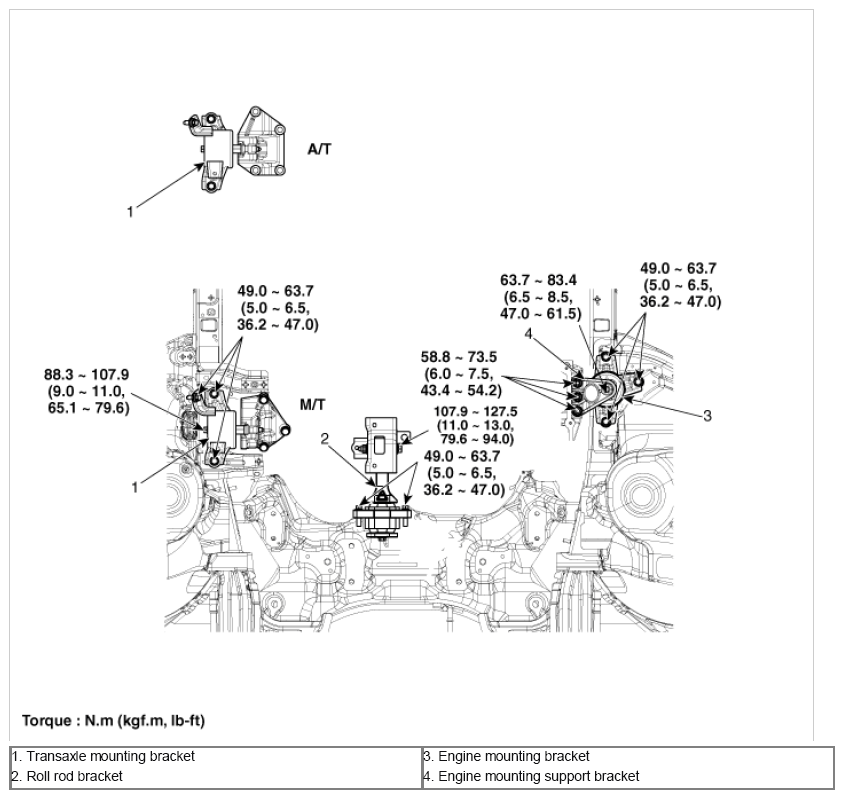

Fig 1: Engine Mounting Replacement Components With Torque Specifications -- 2013
G09885369Courtesy of HYUNDAI MOTOR AMERICA

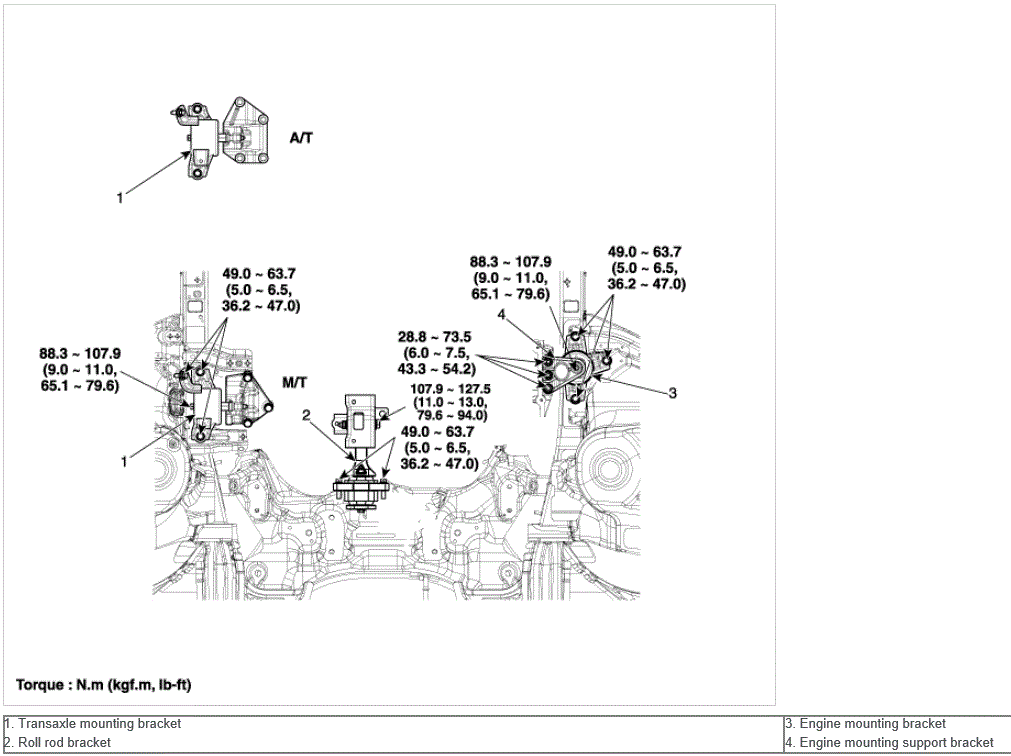

Fig 2: Engine Mounting Replacement Components With Torque Specifications -- 2014
G00554112Courtesy of HYUNDAI MOTOR AMERICA
