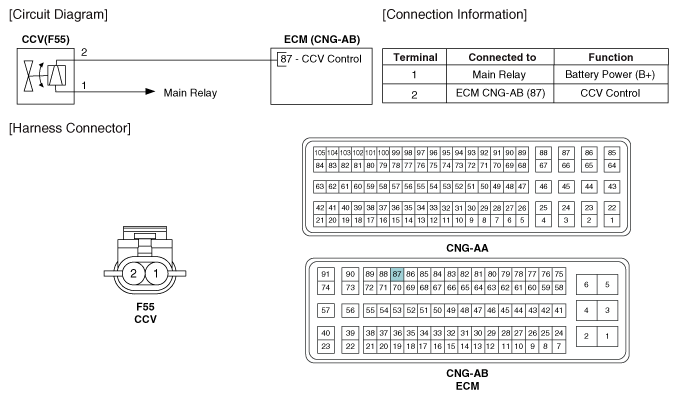

Home › Hyundai › 2013 › Elantra SE, Automatic Trans › Repair and Diagnosis › Engine Performance › Engine Control Systems › Engine Control System › Canister Close Valve (CCV) › Schematic Diagrams › Circuit Diagram › (A/T)
