Components And Components Location

WARNING: This page is about a different car, the 2014 Hyundai Elantra. However, it is still accessible from the selected car via links, so may be relevant.

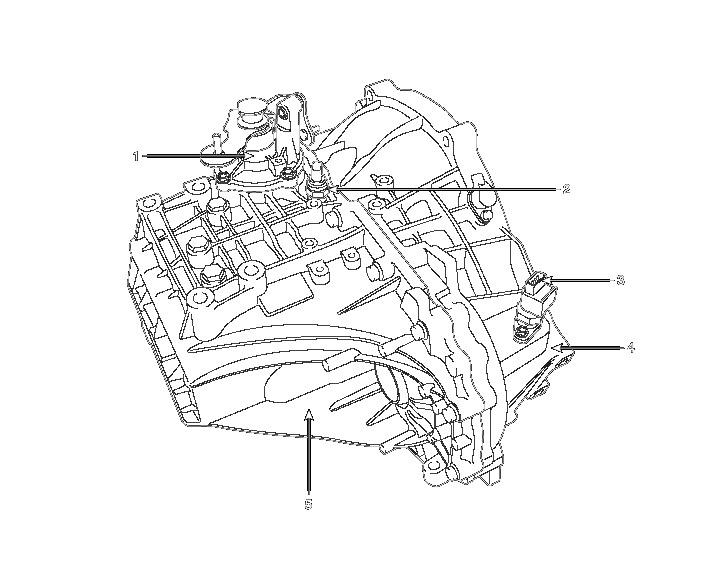

Fig 1: Identifying Transaxle Components

Courtesy of HYUNDAI MOTOR AMERICA

1. Control shaft complete	4. Transaxle housing
2. Back-up lamp switch	5. Transaxle case
3. Vehicle speed sensor	-
