Driver Front Impact Sensor Connector End View (E93)

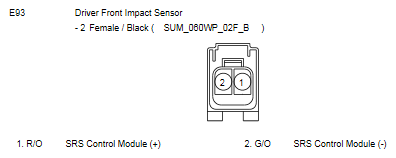

Fig 1: Driver Front Impact Sensor Connector End View (E93)
G10734019Courtesy of HYUNDAI MOTOR AMERICA
