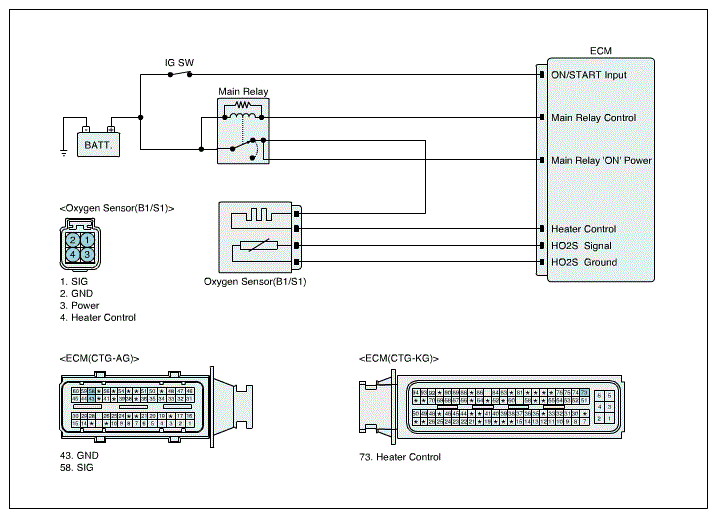

Home › Hyundai › 2013 › Equus Signature › Repair and Diagnosis › Engine Performance › System › Engine Control System Diagnosis (1 Of 2) - 5.0L › DTC P0130: O2 Sensor Circuit (Bank 1/Sensor 1) › General Information › Diagnostic Circuit Diagram
