Lamp Control
Lamp Control
The Lamp function includes the sub functions for On/Off control of the following devices:
Tail/Head Lamp
Fog Lamp

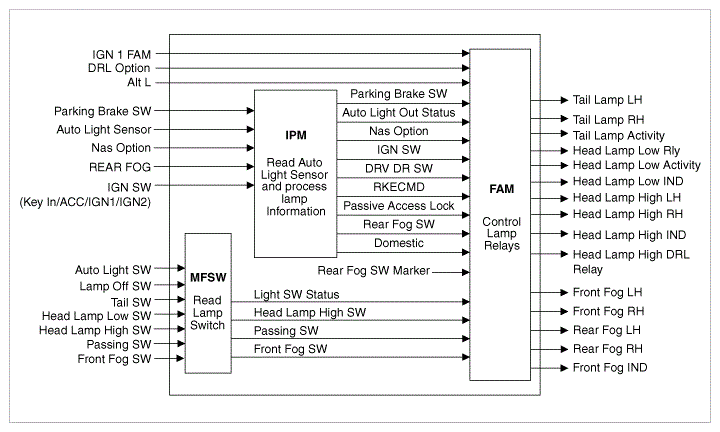

Fig 1: Lamp Control - System Diagram
Courtesy of HYUNDAI MOTOR AMERICA
