Components and Components Location: Components

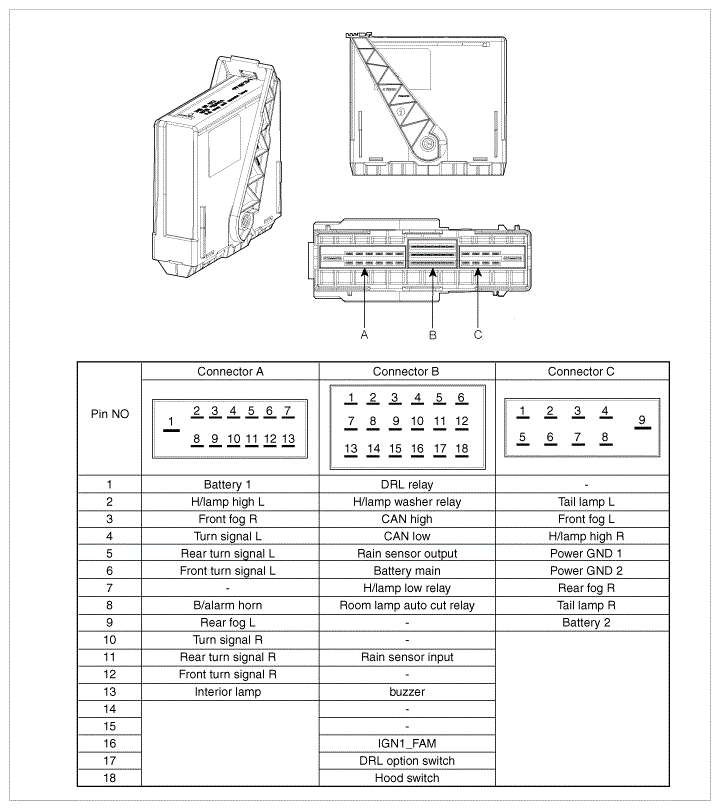

Fig 1: Identifying Front Area Module Connector Terminals
G08838904Courtesy of HYUNDAI MOTOR AMERICA
