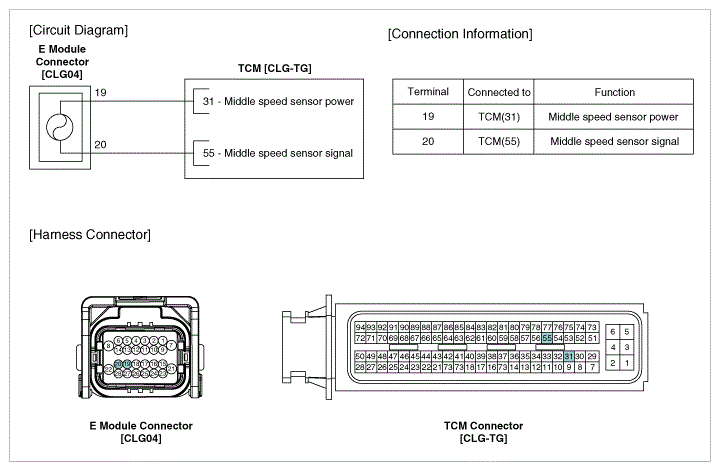

Home › Hyundai › 2013 › Genesis Coupe 2.0T, Automatic Trans › Repair and Diagnosis › Transmission › Transmission Control Systems › Automatic Transmission Control System › Middle Speed Sensor › Schematic Diagrams › Circuit Diagram
